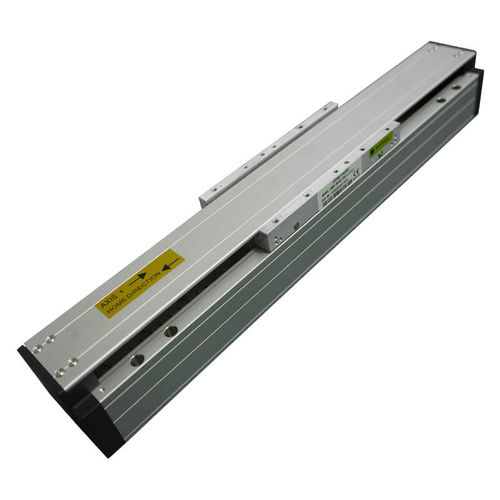

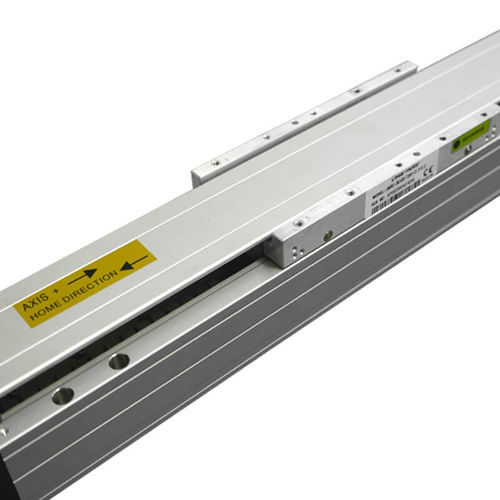

Fast Acceleration High Thrust Micron Position Accuracy Built-in Double Rail Modular Linear Motor Stage for Cross Table or Gantry System

Main Feature

Thrust Range 57N – 1300N.
Feedback control via linear encoder position detection.
Without the transmission error of the screw, micron-level positioning accuracy can be easily achieved.

No mechanical friction leads to low noise and long life.
There is an installation gap reserved between the mover and the stator of the linear motor without contact.
No mechanical friction of parts such as screw.
It will not wear out due to the high-speed reciprocating motion of the mover.
The noise of the linear motor is lower and the service life is longer.

Provide matching linear servo driver.


Series: FXZ60/82/95/115/145
Repeatability: 0.001mm-0.005mm
Horizontal Load: 6kg-45kg
Side Mounted Load: 3kg-30kg
Peak Thrust: 180N-1300N

Ball Screw Module, Belt Driven Linear Guide, Positioning Stage, Motion Controller for Cartesian Robot. CE, FCC, RoHS, ISO9001 Certification.

Huge Variety of Ready-to-Ship Products
Quantity Discounts Starting at 10 pcs
custom OEM Solutions
Value-Added Services

New source, New Price, New Chance.

Parameter Name	Parameter Value
Options	compact aluminum profile guided for the food industry gantry modular for the medical sector with cover open frame
Number of axes	single-axis multi-axis
