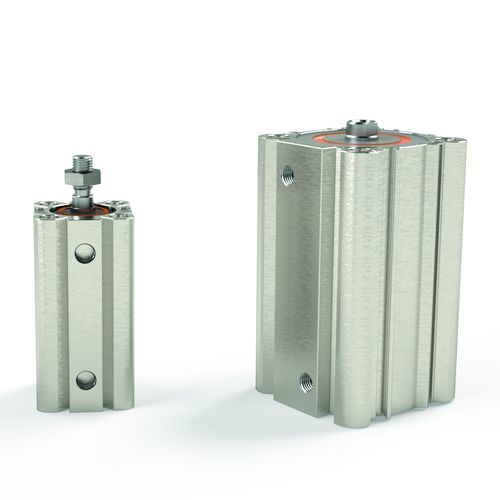

Compact cylinder LINER, ISO 21287, double-acting, Piston Ø 20, Stroke 5, M5, Working pressure max. 10 bar, Temp. -10°C to 60 °C

New series acc. to ISO 21287 characterised by a very short and compact design.

The standard type features a magnetic piston.

Piston rod optionally with male or female thread.

Suitable for filtered, unlubricated or lubricated compressed air.

If lubrication is used, it must be continuous.

Parameter Name	Parameter Value
Type	pneumatic
Technology	magnetic piston with piston rod
Configuration	double-acting
Material	stainless steel, anodized aluminum
Norms	ISO 21287
Other characteristics	compact standard
Stroke (mm)	5 - 80
Pressure	Max.: 10 bar (145 psi)Min.: 0.6 bar (8.7 psi)
Rod diameter	8 mm, 10 mm, 12 mm, 16 mm (0 in)
Bore	Max.: 100 mm (3.94 in)Min.: 20 mm (0.79 in)
Ambient temperature	Max.: 60 °C (140 °F)Min.: -10 °C (14 °F)
