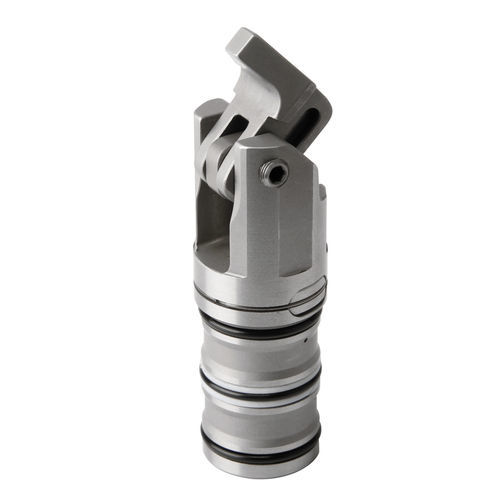

Mini compact clamp

Advantages
● Minimum dimensions (Ø 22 mm)
● Partially immersed body
● Space-saving integration by a patented fixing principle
● Housing can be rotated by 360°
● Mounting without pipes
● Workpiece clamping without any side loads
● Narrow clamping lever
● Metallic wiper edge
● Mounting position: any

Mini compact clamps are designed for application in hydraulic clamping fixtures where oil supply is effected through drilled channels in the fixture body.
Thanks to the small housing diameter of only 22 mm, the mini compact clamp can be installed in places where up to now there was insufficient space for a hydraulic clamping element. In multiple clamping fixtures, the minimum distance between cylinders is 28 mm. A clamping recess in the workpiece a little bit wider than the clamping lever is sufficient for clamping.
Typical applications are:
• Clamping fixtures for small workpieces and workpieces which are very sensitive against deformation
• Multiple clamping fixtures with many workpieces that are closely arranged
• Assembly fixtures
• Clamping fixtures for machining of several sides and complete machining
• Rotary indexing fixtures on horizontal and vertical machining centres

cartridge-type
clamping force 1.3 kN
double acting
max. operating pressure 200 bar
usable clamping stroke: 5 mm
adm. flow rate 5 cm³/s
minimum pressure 20 bar

Parameter Name	Parameter Value
Type	hydraulic
Applications	workpiece
Other characteristics	double-acting compact small
Clamping force	1.3 kN
