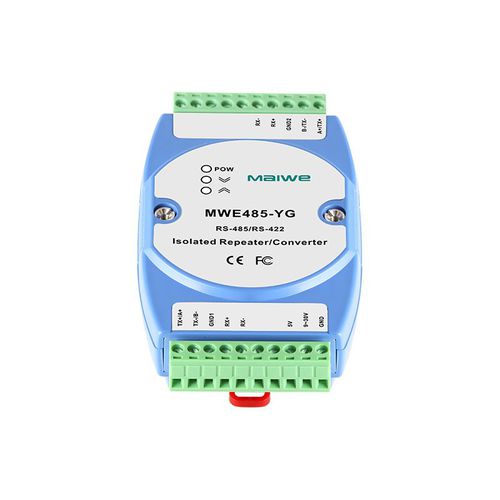

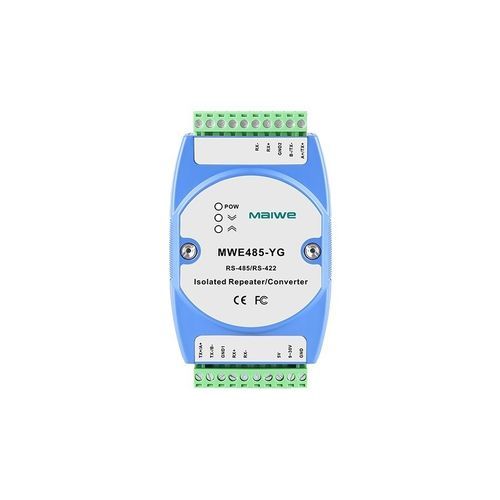

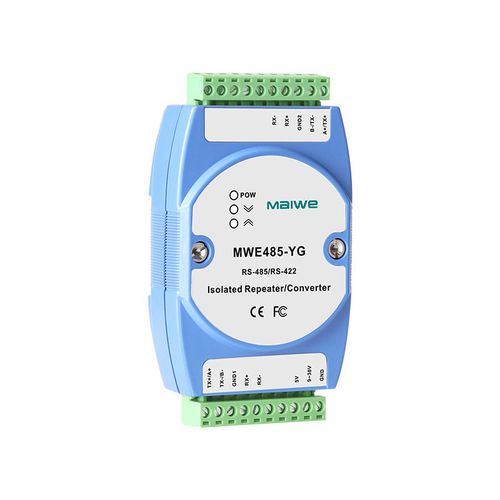

MWE485-YG can convert the RS-485/RS-422 signal in high rate and with a optical isolation, and extend the RS-485/422 distance. RS-485/RS422 Isolated Repeater provides optical isolation protection for data communication between two serial devices, which can effectively avoid damage caused by lightning strikes, surges and other factors. At the same time, it can effectively extend the serial communication distance by relay amplification. With industrial-grade design, it can be stably and reliably applied in various harsh industrial environments to effectively protect the serial port of the device.
Features and Benefits

-Smart design, RS-485/422 wiring conversion without jumpers

-Extend communication distance is 1.5Km (9.6Kbps)

-Support 128-node polling network structure

-Automatic identification of signal flow, zero delay automatic forwarding

-2500V isolated between two sides and power supply

-600W/ms lightning protection, 15KV static protection

-Transparent transmission, Baud Rate self-adaption

Parameter Name	Parameter Value
Options	network industrial transmission communication RS-485 optical isolated RS-422
