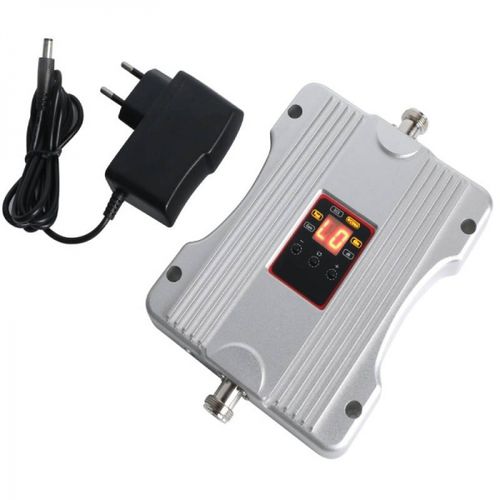

The Jetfon AT-3G-DUAL is a 3G mobile phone repeater kit for voice and data in the 900 and 2100 MHz bands that allows you to receive a signal in dark areas or areas with no reception, mainly indicated for home use, business, small offices, basements, rural houses, etc… Thanks to the “auto shut-off” technology, we avoid saturation of the telephone provider’s repeater.

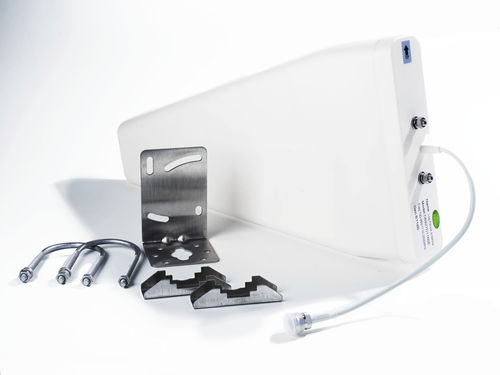

Suitable for all providers to expand voice and data coverage (3G 900 and 2100 MHz). Complete kit with all the necessary elements.

The installation of this equipment must be authorized by the operator that supplies the signal to the user.

• Frequency range: Band 880~915MHz /925~960MHz
• Frequency range: Band 1920~1980MHz /2110~2170MHz
• Maximum transmission power: <15dBm
• Maximum gain: 60/65 dBm ±3dBm
• Power: 5VDC, 2A
• Consumption: <10W
• RF connectors: N-type female
• Dimensions: 150 x 121 x 24mm
• Weight <0.8Kg
• Wall installation
• Degree of protection: IP40
• Humidity: <90%
• Operating temperature: -10°C ~ +55°C

Parameter Name	Parameter Value
Options	network communication
