Description

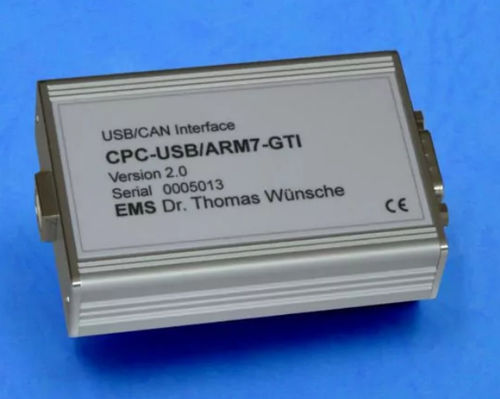

CPC-USB is a CAN interface for USB ports in a compact and robust metal housing. Due to easy handling and favourable price CPC-USB is suitable for configuration and analysis of CAN systems. CPC-USB is equipped with a Cortex M3 microcontroller providing onChip CAN and USB controller. By combining the powerful CPU with internal peripherials low latencies can be achieved. The interface is completely supplied via USB. It supports 11bit and 29bit identifiers. The interface is optionally available with galvanic isolation. In addition a variant with low speed transceiver TJA1054A can be obtained. For applications, where a higher fault voltage on the CAN terminals cannot be avoided, the version HV is available. The use of the transceiver MAX13052 allows voltages up to +-80V on the CAN bus lines. Application development kits for the operating systems Windows and Linux are offered separately. SocketCAN is supported.


Special Features
USB/CAN Interface CPC-USB/ARM7
Powerful Cortex M3 microcontroller with internal CAN controller
Supports CAN protocols 2.0A and 2.0B
Display of USB communication and CAN data transfer via LEDs
Supply completely over USB
USB 2.0 Full Speed
Optional with galvanic isolation between PC and CAN
Optional with low speed transceiver TJA1054A
Optional with +-80V tolerant transceiver MAX13052
Linux socketCAN supported
Development kits for Windows 7/8.x/10 and Linux available
Now available version v2.0 is compatible with version v1.0

Parameter Name	Parameter Value
Options	communication USB
Other characteristics	compact
