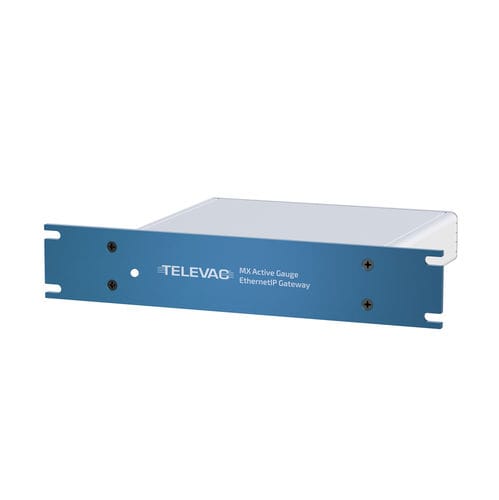

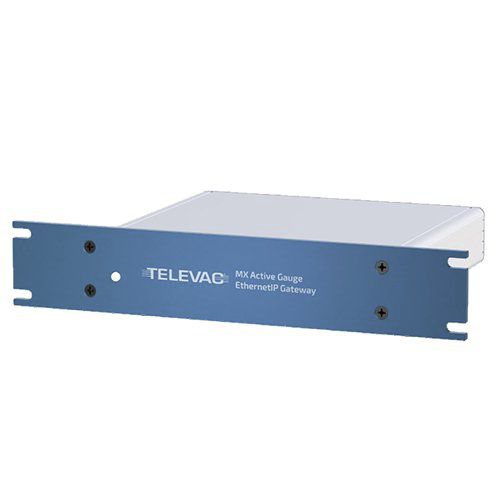

Communication gateway Televac® MX

Communication gateway Televac® MX

Communication gateway Televac® MX

About


The MX Active Gauge EthernetIP Gateway (sometimes also called an EthernetIP vacuum controller, EthernetIP vacuum control unit, or EthernetIP vacuum pressure controller) is the first and only solution designed to provide an EthernetIP connection between Televac® active vacuum gauges and Rockwell Automation® Allen-Bradley® PLCs. An increasingly popular industrial network communication standard, EthernetIP communication offers users faster and more reliable vacuum measurements and eliminates the need for additional analog-to-digital converters or other vacuum controllers and vacuum pressure controllers.

Passerelle de contrôleurs de vide EthernetIP Jauges à vide actives compatibles

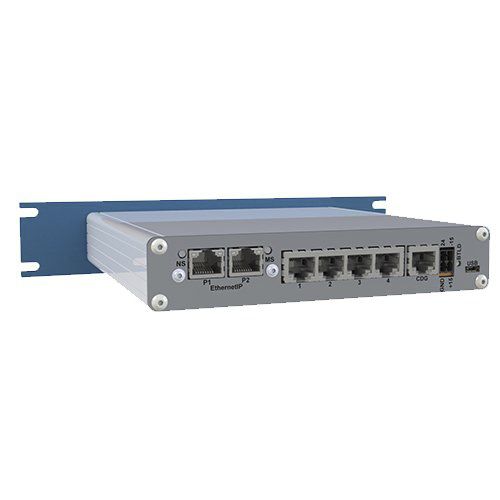

This EthernetIP vacuum control unit supports an easily configurable network of up to (4) Televac® active vacuum gauges and (1) capacitance diaphragm vacuum gauge (CDG) through EthernetIP communications. Multiple gateways can also be daisy-chained together for additional vacuum gauge connections (made possible by dual EthernetIP ports on the back of the unit). The gateway allows users to interface directly with supported PLCs and PCs, including the ability to read vacuum measurements and change vacuum gauge settings from a convenient, remote location without complicated conversion tools. In addition to Televac vacuum gauges, the gateway supports CDGs from MKS, Inficon, Leybold, Brooks, and Setra. 24 V DC and ±15 V DC with D-sub 15 (DB15) and D-sub 9 (DB9) connectors are supported.



PARAMETERS

Parameter Name Parameter Value
Type
  • communication
  • industrial
Network
  • EtherNet/IP
  • RS-485
