About

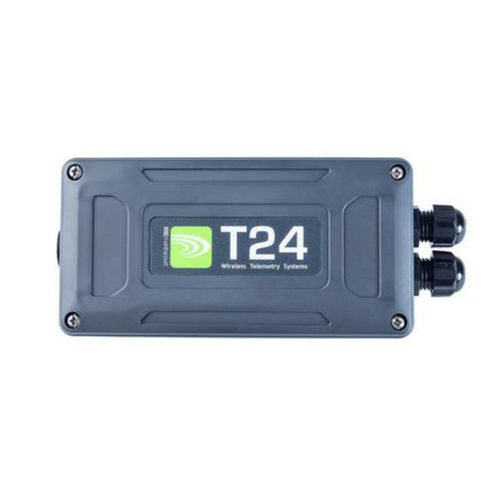

The T24-GW1 is a wireless Modbus gateway that provides a simple interface for users to gather data from up to 100 transmitters in a T24 network. The T24-GW1 uses either the standard Modbus interface RTU* protocol or a simple ASCII protocol.
The wireless telemetry Modbus gateway offers some simple commands available to wake, sleep, and keep awake T24 transmitters.
The licence free 2.4 GHz direct sequence spread spectrum (DSSS) radio telemetry technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. ETSI, FCC and IC approvals.
*Modbus is a serial communications protocol which was originally designed for use with PLCs (Programmable logic controllers). Over time its simple and robust nature has made it a communication protocol standard. It is now amongst the most common available means for connecting industrial electronic devices.
Gathers data from up to 100 transmitters
Stores data which can be requested by a Modbus system
Quick and easy to install
Wireless configuration
Licence free 2.4 GHz radio
Wireless range of up to 800 m (2,600 ft)
External power supply (9-32 Volts)
Waterproof to IP67
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Network |
|
