Optimization and analysis of operational processes
Together with ROCK5, emtrion has developed an IoT gateway that allows you to extract valuable value from your data. Easily & conveniently connect the flexible RockEM IoT gateway to your production management and make your operational processes even more efficient in the future.
The solution to your connectivity problems
For manufacturing industry
For our IoT gateway, you simply do the configuration yourself in just a few steps.
No IT expert knowledge required
Fully encrypted communication with the RockEM IoT gateway works to and from your machines
For OEMs and machine builders
White label support
Individual customizations

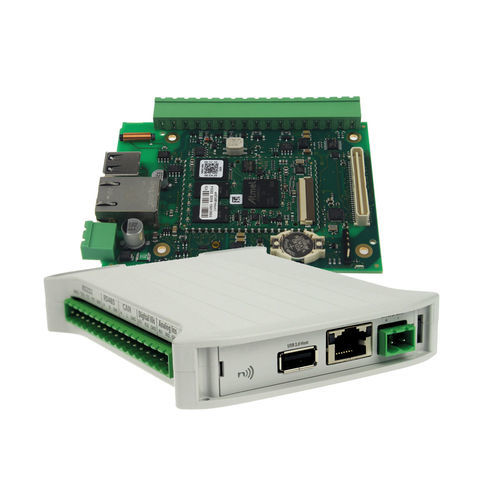

RockEM IoT gateway - features in brief
2 slots for radio modules ensure a maximum of input variants (LoRa, WLAN, Bluetooth etc.)
Maximum flexibility due to connection options to all common fieldbus systems
Direct control of analog inputs and digital IOs
Easy operation through optimized web interface
Fully encrypted communication paths
Firewall protected
Operating system: Linux
on request: CANopen Master/ Slave; EtherNet/ IP; EtherCAT; PROFINET CCB RT1
CPU: ARM Cortex-A5, Microchip SAMA5D2
CPU Performance: 500 MHz - 785 DMIPS
Security: Crypto, TRNG, tamper, on-the-fly DDR/QSPI encryption, secure boot, enviromental monitors, Trust Zone
RAM: up to 512 MByte DDR3 SDRAM
Flash: up to 32 MByte NOR-Flash, up to 16 GB eMMC
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Network |
|
