Suitable for - BCL 2x series bar code readers
BCL 8 series bar code readers
BPS 8 series bar code positioning system
DCR 200i series stationary 2D-code readers
FIS series mobile 2D-code readers
HFxx series mobile RFID read/write systems
HS 65x8
IT 1900g series mobile 2D-code readers
IT 1902g series mobile 2D-code readers
IT 1910 series mobile 2D-code readers
IT 1911i series mobile 2D-code readers
LSIS 222 series stationary 2D-code readers
RFI
RFM
Supply voltage UB - 18 ... 30 V, DC
Current consumption, max. - 300 mA
Type - EtherCAT, RS 232
Number of connections - 6 Piece(s)
Function - Connection to device
Type of connection - Plug connector
Function - BUS OUT
Type of connection - Connector
Thread size - M12
Type - Female
Material - Plastic
No. of pins - 4 -pin
Encoding - D-coded
Function - BUS IN
Type of connection - Connector
Thread size - M12
Type - Female
Material - Metal
No. of pins - 4 -pin
Encoding - D-coded
Function - Voltage supply
Type of connection - Connector
Thread size - M12
Type - Male
Material - Metal
No. of pins - 5 -pin
Encoding - A-coded
Function - Voltage supply
Type of connection - Connector
Thread size - M12
Type - Male
Material - Metal
No. of pins - 5 -pin
Encoding - A-coded
Function - Service interface
Type of connection - Sub-D
No. of pins - 9 -pin

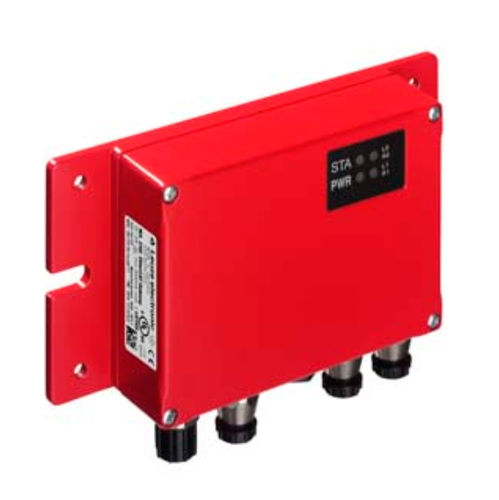

Design - Cubic
Dimension (W x H x L) - 107 mm x 40 mm x 180 mm
Housing material - Metal
Net weight - 700 g
Housing color - Red, RAL 3000
Type of fastening - Through-hole mounting
Type of display - LED
Number of LEDs - 2 Piece(s)
Ambient temperature, operation - -30 ... 55 °C
Ambient temperature, storage - -20 ... 60 °C

Parameter Name	Parameter Value
Type	communication
Network	RS-232 EtherCAT
Other characteristics	IP65
