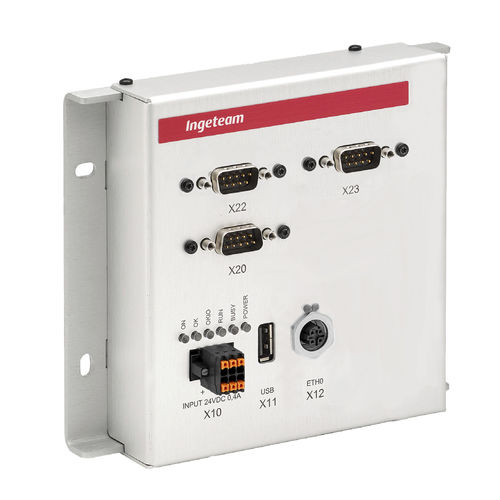

Communication gateway INGESYS GW

Communication gateway INGESYS GW

Communication gateway INGESYS GW

About


INGESYSTM GW meets the interconnection requirements of smart devices in trams and trains in the most common train communication networks.

Its compact, robust design, compliant with the EN50155 and EN45545-2 standards is adapted to the mechanical, environmental and protection requirements of the railway sector.

INGESYSTM GW allows selecting different communication interfaces between different elements (both the physical medium to use and the required communications protocol) depending on the needs of each application. The INGESYSTM GW offers the interconnection of the following communications interfaces: RS232,, RS485, CAN, MVB/WTB, ETHERNET UDP, TCP/IP, TRDP, ETHERNETIP, CIP, PROFINET, WiFi and GSM. It has a modular architecture in which the user can select up to 4 serial links and 3 ethernet links. Optionally, it offers the possibility of incorporating local I/Os enabling its access from the traincommunication network. Together with the programming tools which are compatible with the IEC61131-3 standard, a comprehensive communication function library enables the adaptation of the system to the specific needs of the application. The built-in web server enables also the diagnose, parameterise and monitor the system easily and flexibly to suit the user needs.



PARAMETERS

Parameter Name Parameter Value
Type
communication
Network
  • Ethernet TCP/IP
  • WiFi
  • GSM
  • RS232
  • ProfiNet
Other characteristics
compact
