Industrial-grade x86-based IIoT Gateway with Dual Gigabit Ethernet LAN, 4 COM, 4 USB and Pre-installed Debian

Intel® Atom™ E3826 1.46GHz dual-core processor
Rugged, wide temperature range from -25°C to 70°C fanless operation
Two Gigabit Ethernet LAN ports
Up to two RS-232/422/485 ports and two RS-232 ports
Compact design with 150 mm x 100 mm foot-print

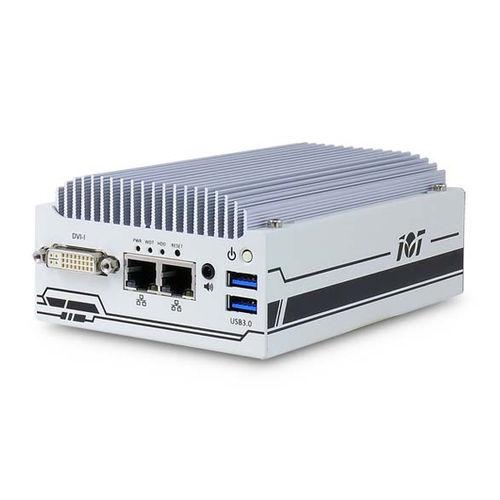

IGT-124 is an x86-based industrial-grade IoT gateway that accepts wide DC voltage input range from 8 to 35VDC and supports wide operating temperature from -25°C to 70°C. As a member of Neousys IGT series, IGT-124 is shipped as a complete system with pre-installed Intel® Atom™ Bay Trail, DDR3L RAM, data storage capacity and Ubuntu operating system.

To acquire data, IGT-124 features 4 COM, 4 USB and 2 Gigabit Ethernet ports to connect to a variety of industrial devices. It also has a DVI-I connector for video output, allowing it to display dashboard statistics or aid in maintenance, if necessary. For ease of deployment, IGT-124 can choose between two mounting options, wall or DIN-rail mounting. Of the two, the DIN -rail kit provides a rugged clamping force to resist vibration and shock during operation. Communication wise, IGT-124 provides a PCIe mini socket for WiFi or LTE modules. Neousys offers an LTE connectivity solution that is precertified to operate on AT&T and Verizon networks.

Parameter Name	Parameter Value
Type	communication industrial IoT
Network	Ethernet WiFi RS-232 LAN USB
Other characteristics	compact
