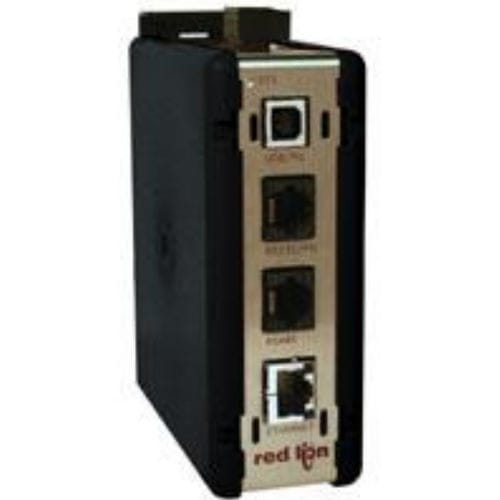

The ICM8 is designed to act as an ethernet gateway offering protocol conversion for Red Lion panel meters. With two serial ports (one RS-232 and one RS-485) and a 10/100Base-T(X) Ethernet port, the unit performs protocol conversion, allowing Red Lion panel meters to communicate seamlessly to the ethernet network. Programming the unit can be accomplished via the RS-232 or the USB port using Crimson® software. It is important to note that this device is designed to function with Red Lion panel meters and will not offer protocol conversion if a Red Lion product is not connected to a serial port. The ICM8’S DIN-rail mounting saves time and panel space and snaps easily onto standard top hat (T) profile DIN rail.

- Ethernet Gateway for Red Lion Panel Meters with RLC Serial Protocol
-Programmable via Crimson 2.0 Software
-USB Programming Port
-Extensive Ethernet Driver List Allows Easy Data Mapping to PLCs, PCs, and SCADA Systems
-10/100Base-T(X) Ethernet

Parameter Name	Parameter Value
Type	communication
Network	Ethernet RS-485 RS-232 USB
Other characteristics	DIN rail
