About
Flex2COM is a gateway for industrial Ethernet communication in real-time. The gateway provides a mature solution for multi-protocol Fieldbus communication based on the Renesas RZ/N1D heterogeneous multi-core processor.

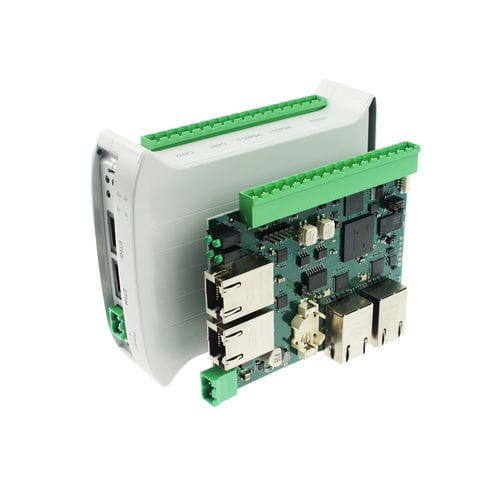

The operating system Linux Yocto is available for the SBC-RZN1D. Complete the SBC with a casing. More information on this solution: Flex2COM IoT Gateway
High performance with low power consumption
The integrated R-IN Engine subsystem of the RZ/N1D stands for Renesas Industrial Network Controller. It was developed for the requirements of Industry 4.0. It consists of a 32-bit Arm Cortex-M3 RISC CPU with 2 MB RAM, a Gigabit Ethernet MAC (GMAC), and an RTOS accelerator HW-RTOS. This concept enables high speed and real-time with low power consumption. The R-IN Engine is supplemented by a 5-port Ethernet switch and slave controller for Sercos III and EtherCAT for industrial multi-protocol communication.
Support of various protocols
Flex2COM offers the user two 100 Mbit interfaces for industrial Ethernet protocols such as EtherCAT, Profinet CCB RT1, EtherNet /IP, or Sercos III. In addition, there are two 1 Gbit interfaces for TCP/IP communication, two CAN 2.0B interfaces with CANopen support, and three UART interfaces.
Flexible choice of operating
Flex2COM is optimized for Linux Yocto. If required, it supports Linux Debian.
Key Features
Renesas RZ/N1D processor with Dual Cortex®-A7 at 500 MHz and Cortex®-M3 at 125 MHz
R-IN Engine for industrial Ethernet communication
Advanced 5 Port Switch
EtherCAT Slave Controller
512 MB DDR3-SDRAM
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Network |
|
| Other characteristics |
|
