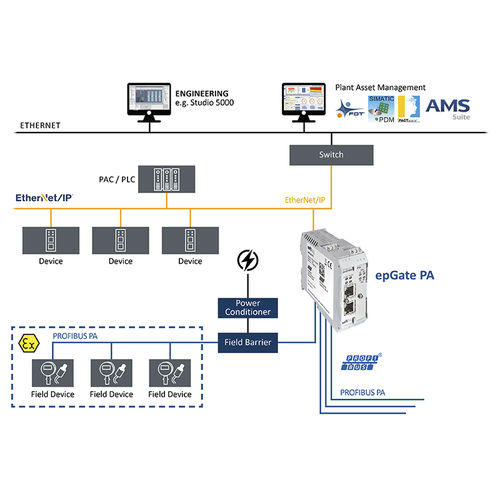

Direct Integration of PROFIBUS PA Segments into Ethernet/IP Control Systems

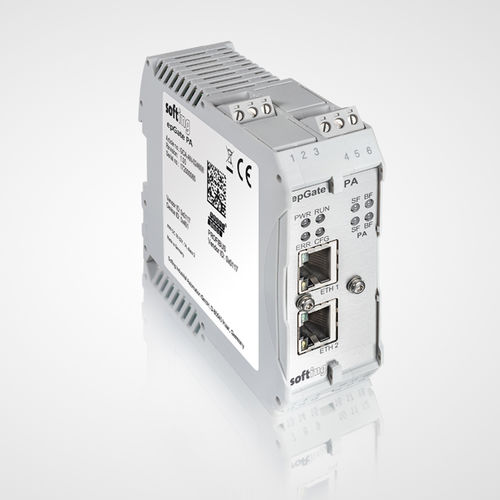

With epGate PA it is possible to integrate up to 4 PROFIBUS PA segments into Ethernet/IP. With epGate PA the engineering costs can be reduced since it re-uses existing power conditioners in technology upgrade projects. It enables configuration, parameterization and plant asset management using standard industry tools.

Key Component for Transition to State-of-the-Art Technology
• Simple replacement of installed PROFIBUS DP/PA segment couplers
• Re-use of existing PROFIBUS PA segments without requiring modification
• Support of common control systems e.g. Emerson DetlaV or Rockwell Control Logix
• Support of DLR for redundant communication in the ring with EtherNet/IP

Direct Connectivity to PROFIBUS Segments
• Acting as EtherNet/IP device (adapter) and PROFIBUS PA Master
• Support of up to 4 PROFIBUS PA segments

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools
• Supports major EtherNet/IP engineering tools such as Studio 5000 and AMS Device Manager
• Included CommDTM allowing use in FDT/DTM frame applications
• EDD-based device parametrization using Siemens Simatic PDM

Simple Integration Through Add-On Instructions
• Data access of PLC program to PROFIBUS devices without requiring detailed PROFIBUS knowledge
• Mapping between the two protocols generated by provided tools
• Use of Add-On Instructions (AOI) containing detailed PROFIBUS data type definitions
• Transparent communication overcoming protocol differences
• Optimized for usage with Allen Bradley controllers

Parameter Name	Parameter Value
Type	communication industrial
Network	EtherNet/IP PROFIBUS PA
Other characteristics	DIN rail compact 2 port IP20
