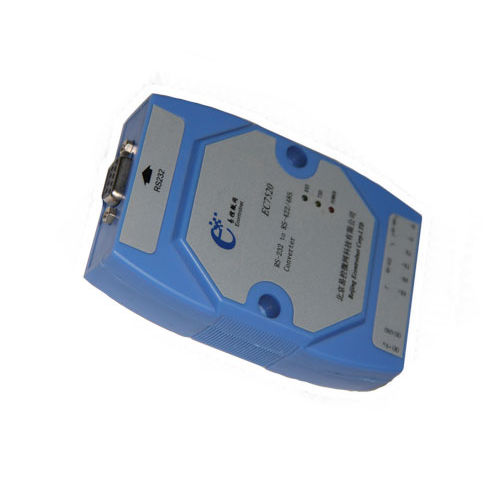

RS485 to RS232 communication converter, photoelectric isolated interface converter

Interface feature: port compatible with EIA / TIA RS-232C, RS-485/RS-422 standard

Supply voltage: DC9-36V

Electrical Interface: RS-232C interface DB9 hole connector, RS-422/RS-485 interface four
terminals, power interface two terminals

Transmission media: twisted pair or shielded wire

Working mode: asynchronous half-duplex or full-duplex asynchronous

Signal indication: three signal lights indicate TXD, RXD, and POWER

Isolation: isolation voltage 3500VRMS, 500VDC continuous

Transfer rate: 115.2K BPS to 300M; 38.4K BPS to 2.4KM; 9600 BPS to 5KM

Degree of protection: RS-232 interface +15 KV ESD protection, RS-422/RS-485 interface
each 600W lightning surge protection
Transmission distance: 0-5 km (115200-300BPS)

Size: 115mmx72mmx25mm
Operating environment: -25 ° C to 70 ° C, relative humidity: 5% to 95%
Mounting: Surface or DIN rail
Ingress Protection: IP20

Parameter Name	Parameter Value
Type	communication
Network	RS-485 RS232 RS-422
Other characteristics	DIN rail IP20
