-Combined power and fibre ring network
-Self-healing Ethernet ring topology using RSTP
-Indicator lights for easy system diagnostics
-Wide operating temperature range 0-60°C
-IP44 Wall mounted enclosure
-Interfaces to Lab Impex, Canberra AB96, iCAM or G64 radiation monitors
-Extra RS485 port for a separate monitor

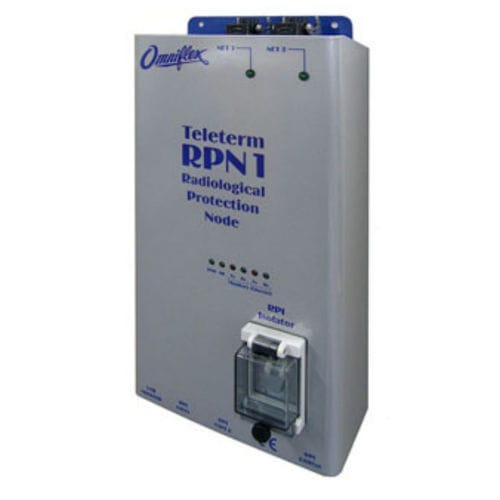

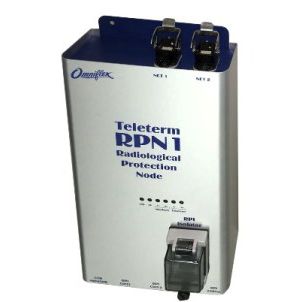

The Radiological Protection Gateway (RPN1) gathers data from multiple Lab Impex / Ultra Electronics and Canberra radiation monitors and networks the data to supervisory systems via a special Fibre + Power Interface to an Ethernet ring topology network.

Winner of the Nuclear Decommissioning Authority SME Innovation Award! Refer to Press Release here.
Overview

The Omniflex Teleterm Radiological Protection Gateway (RPN1) simplifies the process of gathering data from Lab Impex / Ultra Electronics, Canberra AB96, iCAM or G64 monitors by combining all the required features into a standard, off-the-shelf product.

Simply connect Teleterm RPN1 nodes together into a fibre+power ring network using the specified cables and link to the Lab Impex / Ultra Electronics or Canberra radiation monitors of your choice.

The RPN1 gateway only requires simple configuration through the USB port provided in order to produce the required functionality.
Supports a wide range of Radiation Monitors

The Teleterm RPN1 is supplied with built in support for a wide range of monitors (see the list of supported radiation monitors in the datasheet specifications). If your monitor is not listed, consult with your Omniflex representative for availability.

Parameter Name	Parameter Value
Type	communication
Network	Ethernet USB RS-485
Other characteristics	2 port
