Microcontroller based solution for simple and minimal applications
The control unit provides full protection of the engine parameters display the state of the system with front panel indicators and offer an efficient management of the engine.

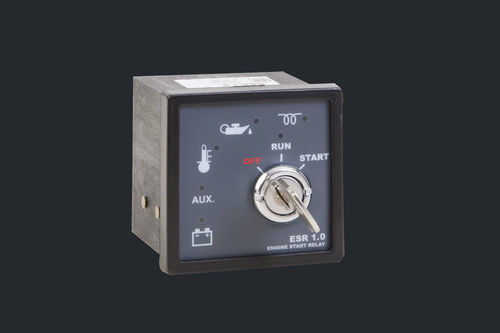

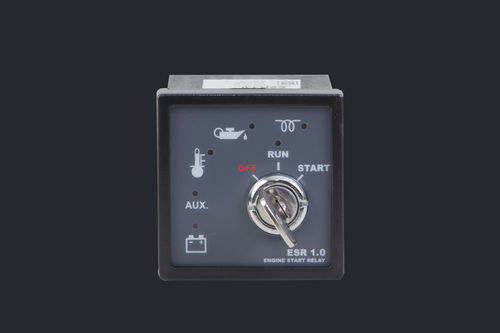

ESR 1.0 control unit is used for starting, stopping and controlling any diesel or gasoline engine. The control unit provides full protection of the engine parameters display the state of the system with front panel indicators and offer an efficient management of the engine.
In this model, engine cranking can be made manually with the front panel mounted key switch.
ESR 1.0 protects the engine against the failures by monitoring oil pressure, engine temperature, auxiliary fail inputs and charge alternator failure.
KEY FEATURES
• Micro-controller based design
• Pre-glow heater control
• Low oil pressure failure protection
• High engine temperature failure protection
• Auxiliary input protection
• Charge alternator failure warning
• Fuel / Start solenoid output control
• Alarm output contact
• Excitation current feed for charge
• Alternator unit
• Small Dimensions (72mmx72mm)

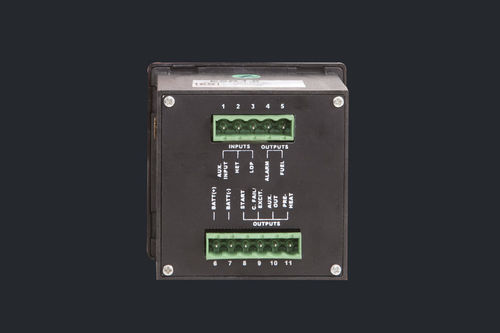

• Easy connection via rear panel screw terminal sockets
• High reliability concept design (MTBF > 50.000 hours)

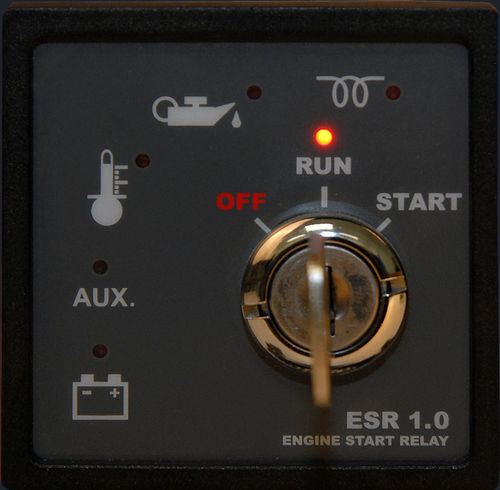

• Front panel LED indicators
• IP-52 front panel protection class
• 9-36Vdc supply voltage
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
combustion engine
|
