• Power: thermopiles, photo detectors and pyroelectrics
• Energy: thermopiles (in single shot mode) , photo detectors and pyroelectrics

MULTIPLE LANGUAGES AVAILABLE
Interface fully translated in English, French, German and Japanese

UNIQUE ERGONOMIC DESIGN
Great for both handheld and tabletop use, with improved rubber bands and quick stand for better stability

INTUITIVE USER INTERFACE
Easy to navigate interface, with many display features:

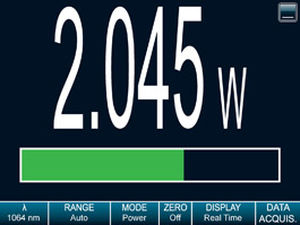

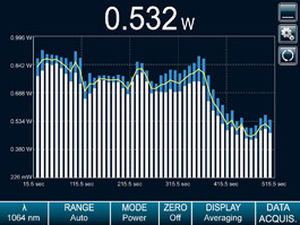

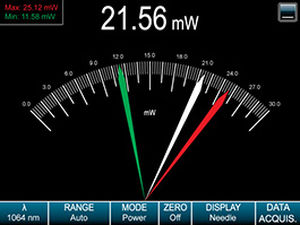

• Single or dual graph display
• Instant access to the main functions
• Function Search tool

USB KEY ACCESS
Store data directly on a USB key

REAL-TIME STATISTICAL FUNCTIONS
Max, min, average, standard deviation, RMS and PTP stability, pulse # and repetition rate

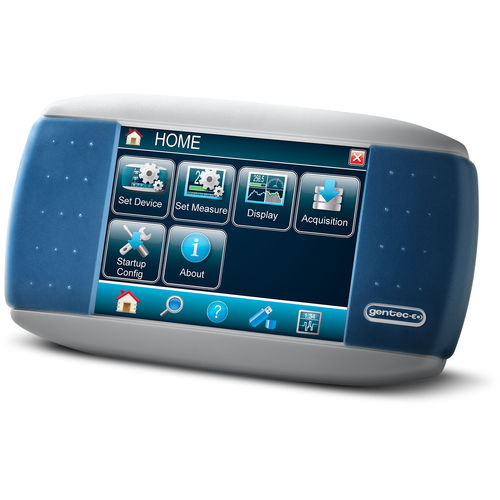

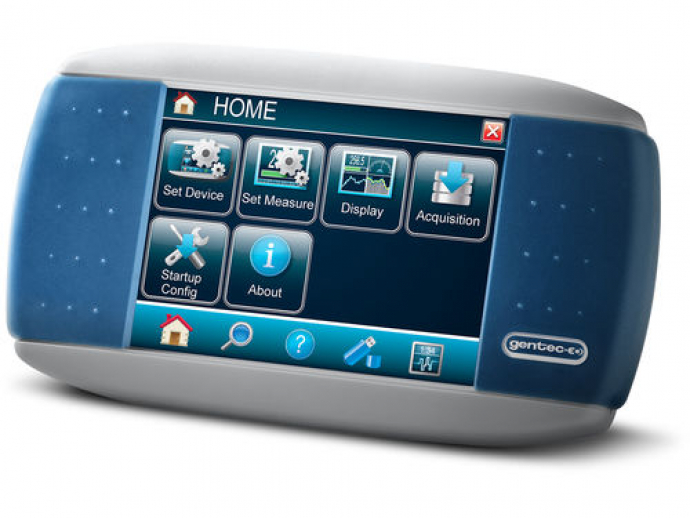

HOME
• Set device: set all the parameters related to your MAESTRO device.
• Set measure: set all the parameters related to your sensor.
• Display: set the device in dual or full screen display mode and choose the display(s) you want.
• Acquisition: set all your acquisition parameters (time, sample rate, etc.).
• Startup config: choose how your MAESTRO will remember your sensor settings at startup.
• About: view the main parameters and update your MAESTRO.

SET DEVICE
• Use the elements in this menu to set the parameters related to your MAESTRO:
• Number of digits: use this menu to set the precision of the measurement.
• Serial commands: set compatibility with SOLO2 and use the RS-232, USB and analog outputs
• Ethernet: configure the Ethernet communication protocol.
• Languages: select the display language: English, German, Japanese or French (firmware V1.04.

Parameter Name	Parameter Value
Type	color with touch screen
Format	640 x 480
Applications	power
Other characteristics	RS-232 Ethernet
