For automatic packer lines

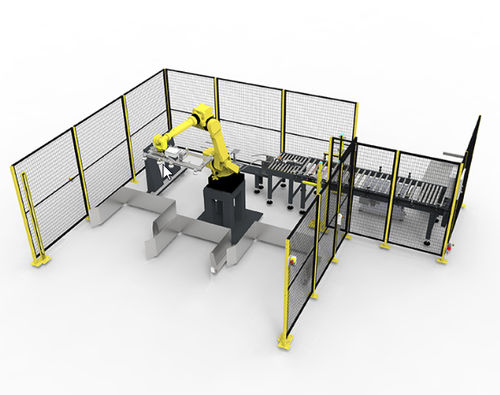

The robot collects the carton from a magazine using suction cups in its claw. Proceeds to form the box using different programs. Applied to a filing line, increases the production and the quality of the finished box.

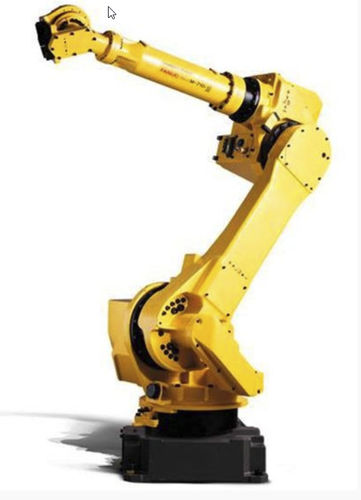

Standard machine
6 axis (J1 to J6)
Engines: AC Servo Motor
Load depending on application
Maximum reach 2050 mm.
Operational space according to attached diagram
Repeatability: +- 0.03 mm.
Weight: 560 Kg.
Power supply: Three-phase 380V AV, Max. 2,5 Kw.
Handling claw
The robot works with a claw with a specific design for each use… bags, drums, boxes, cases, bottles, etc.

Standard machine
4 axis (J1 a J4)
Engines: AC Servo Motor
Load depending on application
Maximum reach 3143 mm.
Operational space according to attached diagram
Repeatability: +- 0.25 mm.
Weight: 1940 Kg.
Power supply: Three-phase 380V AV, Max. 13,2 Kw.
Handling claw
The robot works with a claw with a specific design for each use… bags, drums, boxes, cases, bottles etc.

Parameter Name	Parameter Value
Type	collaborative
Number of axes	6-axis 4-axis
Function	handling packaging
Reach (mm)	2050 - 3143
Weight (kg)	560
