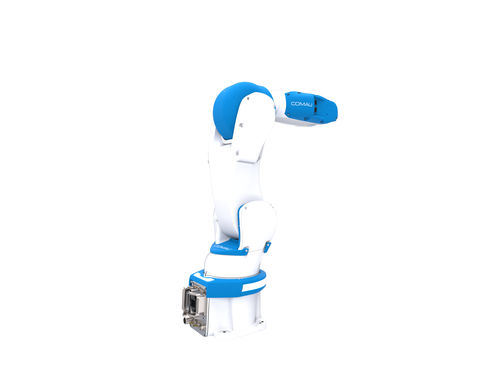

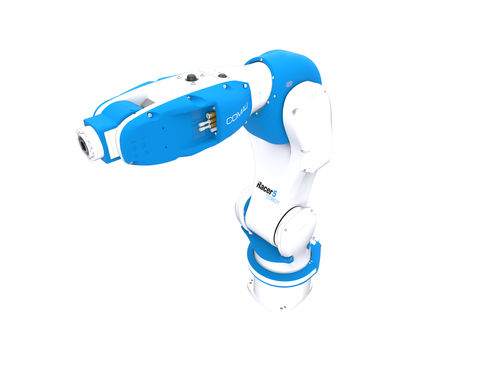

Comau Racer5 COBOT is the only collaborative robot that can automatically switch from industrial robot speed to collaborative speed when a human operator enters in its working area.

It combines flexibility and collaborative safety features with high-performance repeatability and accuracy and allows reducing cycle times while ensuring better productive throughput.

Features

Collaborative/non-collaborative speed switch
Up to 500 mm/s cartesian speed in collaborative mode
Up to 6 m/s cartesian speed in non-collaborative mode
Safe Collision Detection function – PL d CAT. 3 certified by TÜV Süd


Benefits

High repeatability and accuracy
Racer-5 industrial robot speed when no human operator nearby for an increased productivity
Electrical and air connections near the wrist avoiding external harness
Immediate awareness of cobot status due to LED stripe
Long life cycle thanks to mechanical robustness
Efficiency and flexibility of the cycle
Reduction of spaces for automation
Simplified process inspection and quality control

Parameter Name	Parameter Value
Operating temperature (°C)	-10 - 55
Payload (kg)	5 - 5
Reach (mm)	809 - 809
Repeatability (mm)	0.03 - 0.03
Weight (kg)	34
Mounting	floor-mounted ceiling-mount wall-mounted
Number of axes	6-axis
Other characteristics	short cycle time high-precision
Protection level	IP54
Type	collaborative
