Highlights
Multiple safety design in both hardware and software with sensitive collision
detection, helps realize fenceless human-machine cooperative operation.
The aglie and easy-to-use drag teaching function greatly simplifies the
programming and manipulation the robot. Thanks to the lightweight structure
design, customers can achieve rapid deployment and flexible production
management;

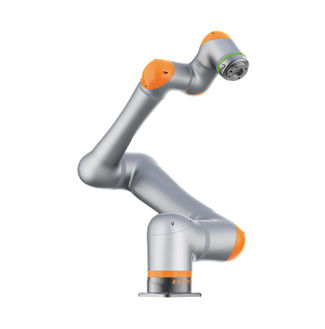

Thanks to our origin of industrial robots, ECR 5 accuracy grade and operation
stability can be comparable to that of industrial robots with the same load.
Applications
It can be widely used in handling, sorting, assembly , machine tending and other applications.
Industries
Suitable for 3C, food and beverage, metal parts, education, plastic, pharmaceutical and other industries, can also be used in consumer industries

Parameter Name	Parameter Value
Type	collaborative
Number of axes	6-axis
Function	handling
Mounting	floor-mounted ceiling-mount wall-mounted
Protection level	IP54, IP40
Payload (kg)	5 - 5
Reach (mm)	928 - 928
Repeatability (mm)	0.03 - 0.03
Operating temperature (°C)	0 - 50
Weight (kg)	20.5
