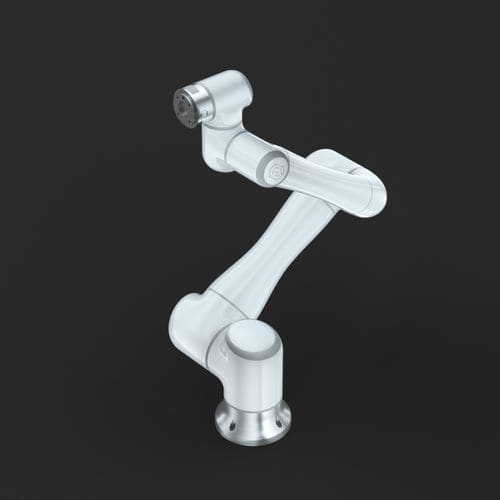

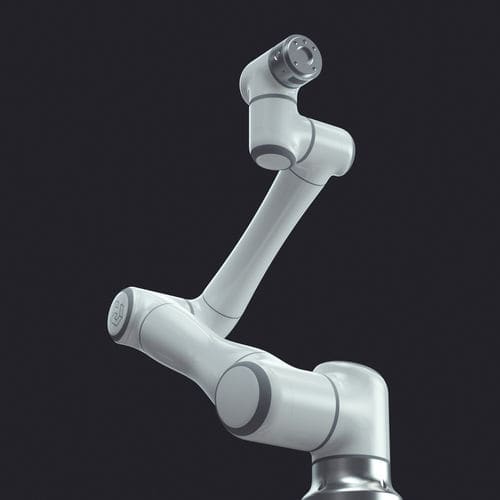

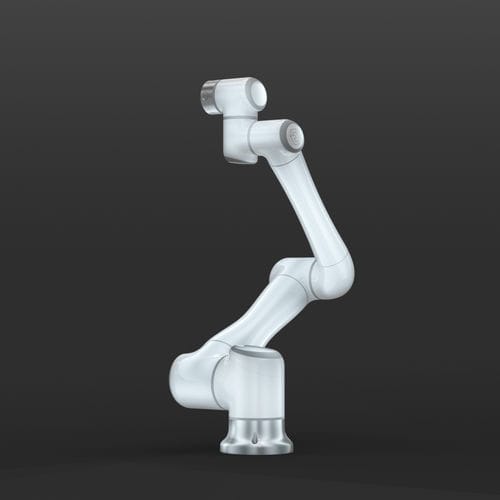

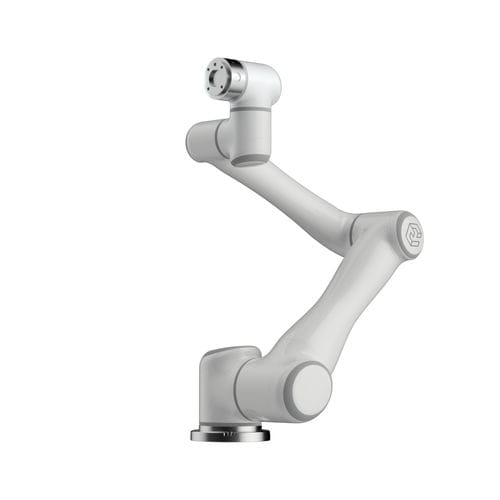

6kg EC66 six-axis collaborative robot
Six-degree-of-freedom, self-weight 17.5kg, - payload 6kg
Working radius 914mm -
Repeated positioning accuracy+-0.03mm
Maximum Speed 2.8m S
Tÿpical Power 250W
Protection Level IP54
Security: Ability to work side by side with humans without the need for a safety fence for isolation, possesses high reliability and safety
Lightweight: The lightest and most flexible collaborative robot with a lighter self-weight and a stronger payload. The self-weight is only 17.5kg and the payload is 6kg.
Good-looking: The most good-looking collaborative robot, the overall industrial design is exquisite and agile, and the screw hidden design presents a simple and streamlined shape.
High efficiency: the maximum speed can reach 2.8 m / s, the running efficiency is high, the trajectory is smooth, and the movement is coherent
Easy to use: easy to carry, easy to transport, simple assembly and disassembly, supports 48V battery power
Intelligence: equipped with machine vision Elite Vision system, the robot not only has "good appearance", but also high "IQ"
Collision detection: Realizes safe human-machine interaction, able to detect whether there is a collision between the robot and the staff in real time, and ensure that the collision will not harm the staff with corresponding control strategies
Suitable industries
3C elecjtronics, new consumer, métal processing, home appliances, furniture, auto parts, food Chemicals
Suitable applications

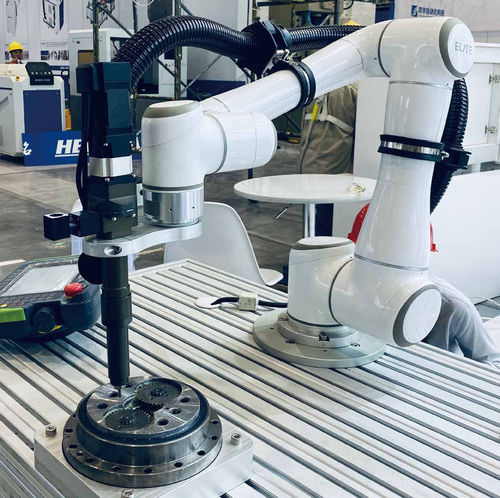

Pick and place, machine loading and unloading, screw locking, item sorting, conveyor tracking palletizing, material removal (grinding and removal of burrs)
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
collaborative
|
| Number of axes |
6-axis
|
| Function |
|
| Mounting |
benchtop
|
| Application domain |
|
| Protection level |
IP54
|
| Other characteristics |
|
| Payload (kg) |
6 - 6
|
| Reach (mm) |
914 - 914
|
| Repeatability (mm) |
0.03 - 0.03
|
| Speed (mm/s) |
2800 - 2800
|
| Operating temperature (°C) |
0 - 50
|
| Weight (kg) |
17.5
|
