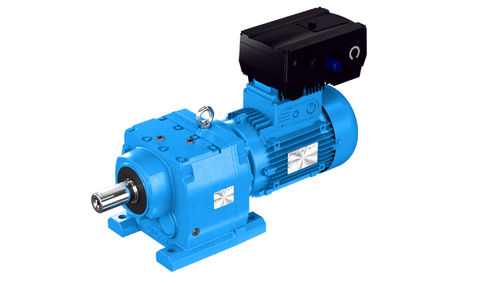

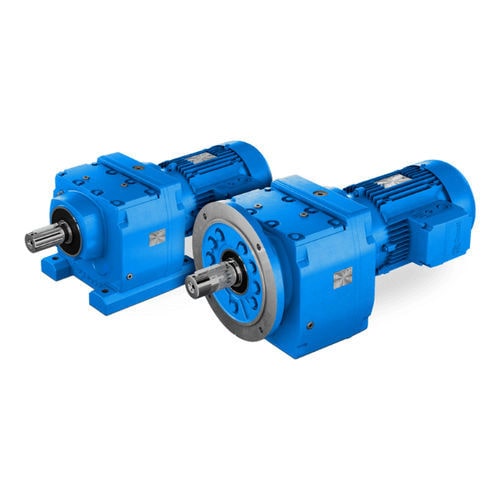

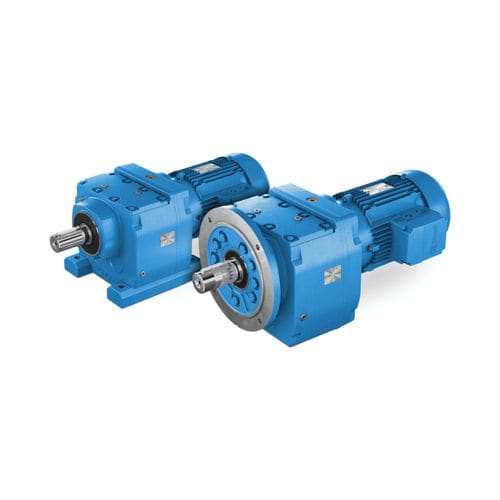

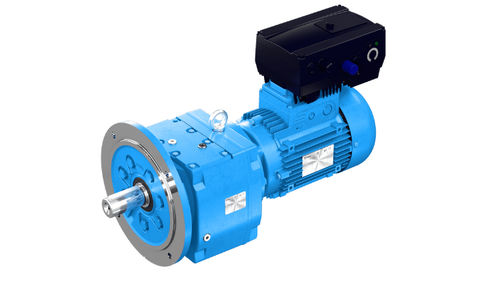

iFit, the new Rossi Gearmotors range. Rossi has used its experience to create a high-performance helical in-line gearmotor, easy to configure and directly, integrate with any industrial machine. User-friendly, real-time replacement and fitting without re-engineering investments.

Equipped with compact IE3 premium effciency electric motors (IEC or NEMA), available with ioT-based smart inverter. Made in Rossi: quality for the perfect Fit.


FEATURE

Fully interchangeable with market standards
Made in Europe
Full range with robust cast iron housing
Gear precision as per DIN/ISO 6 or better
New IE2, IE3 compact electric motors

BENEFITS

“Plug & Play” with no re-engineering costs
Superior quality, minimum maintenance
High performance and reliability: minimum deformation, no gearing misalignment, no vibration, and low noise level
Energy saving reduced backlash
Premium efficiency, long lifetime and no oil leakage
Wash down capability. Better hygiene
Up to 12% torque higher than market standard

Parameter Name	Parameter Value
Motor type	AC
Type	helical
Shaft orientation	coaxial
Shaft configuration	solid-shaft
Power (W)	500 - 1000
Performance	high-torque high-performance low-backlash
Product applications	industrial for the food industry
Other characteristics	compact IE3 cast iron
Gear ratio (unit)	3.4 - 290
