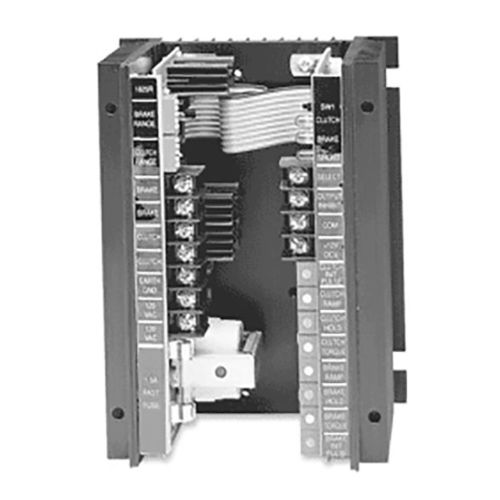

Warner Electric's Accel-Decel Control provides soft starting and stopping to full torque. This control allows for adjustment of the acceleration and deceleration time ramps to achieve a repeatable soft start or stop, while still allowing the clutch or brake to reach full torque.Panel Mounted The CBC-1825R provides consistent and repeatable acceleration and deceleration when used with Warner Electric 90 VDC clutches and brakes. Current to each channel is introduced along an adjustable time ramp and monitored continuously. Adjustments include initial pull-in pulse, hold level, maximum torque, and ramp time. LEDs are provided on the circuit board to indicate power is applied to the clutch or brake unit.Note: It is recommended that the auto-gap springs be removed from the clutch brake for successful accel-decel application.

Parameter Name	Parameter Value
Applications	clutch and brake
Options	adjustable
