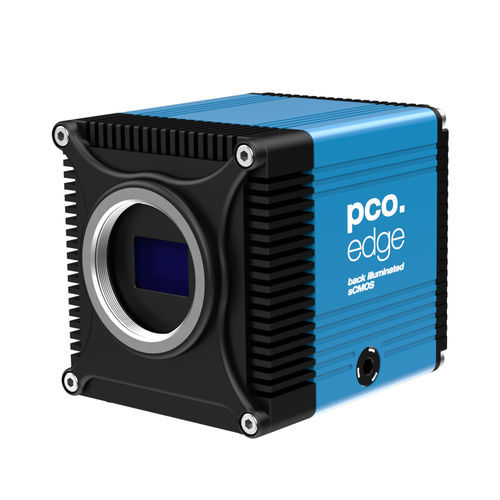

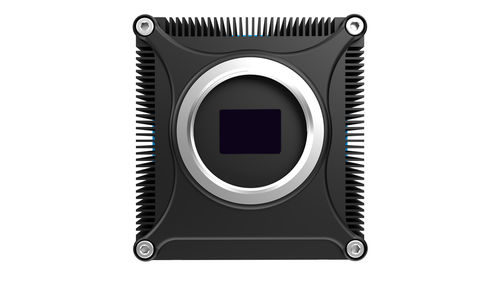

The pco.edge 10 bi CLHS is our next-level sCMOS camera designed to deliver exceptional imaging performance suitable for microscopy, life science and physical science applications. With a back-illuminated image sensor, the pco.edge 10 bi CLHS comes with a quantum efficiency of up to 85 % with broad spectrum out to NIR. The sensor incorporates microlenses and a full-pixel height deep trench isolation for suppressing crosstalk and achieving excellent modulation transfer function for highest image quality.

The pco.edge 10 bi CLHS provides a large image circle by using a high-resolution 10.5 MPixel image sensor with a square pixel size of 4.6 µm. An extremely low dark current and a readout noise of 0.8 electrons is achieved by thermal stabilization and active cooling of the sensor. Moreover, the sensor technology enables reduction of the noise peak and tail which makes it comparable to noise behavior of CCD sensors. Together with a high full well capacity, the pco.edge 10 bi CLHS offers a dynamic range of 25,000:1 and high frame rates of up to 120 fps with transmission via a fiber optical link.

Sensor technology
sCMOS

Color type
monochrome

Resolution
4432 x 2368 pixels

Sensor diagonal
23.1 mm

Pixel size
4.6 x 4.6 μm

Maximum frame rate @ full resolution
120 fps

Maximum pixel rate
1467 MPixel/s

Peak QE
85 % @ 500 nm

Typ. read noise1
0.8 e-

Dark current @ sensor temperature
0.2 @ +10 °C e-/pixel/s

Maximum dynamic range
25,000 : 1

Shutter type
Rolling Shutter

Sensor cooling2
air & water

Additional options
lightsheet

scanning mode3,
lens control, inbuilt Jetraw® compression

Dimensions (H x W x L)
95 x 90 x 109 mm

Parameter Name	Parameter Value
Applications	for scientific applications medical for research and development for microscopes for biomedical research
Technology	digital
Function	thermal scientific vision
Spectrum	NIR, monochrome
Sensor	sCMOS, CCD
Interface	CLHS
Resolution level	ultra-high resolution
Other characteristics	very high-sensitivity with rolling shutter stabilized cooled
