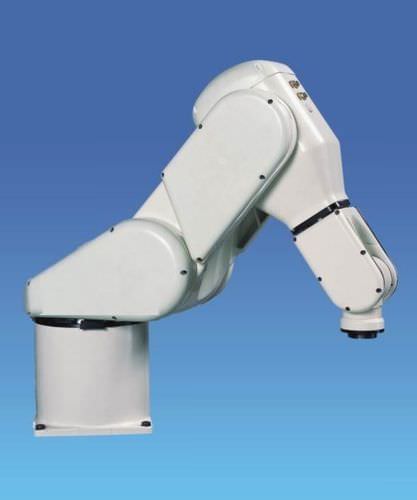

Cleanroom 6-Axes-Robot
ISO-Cleanroom class 5...8
(US. Fed. Stand. cl. 100 ...100'000)
•high speed robot system
•6-servo-axes, freely programmable
•with vacuum- or nipper grippers
•fully integrated media guidance
•installation sizes for 3- 60 kg pay load
•maximum reaches from 620 - 2100 mm
•repeat accuracy +/- 0,05 till 0,15 mm

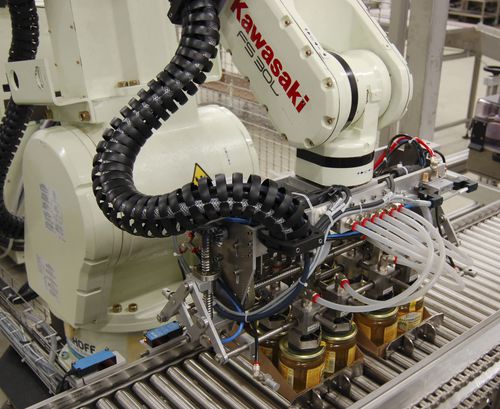

Cleanroom Robot System for Handling with Foodstuff Boxes according LMG, 93/43/EWG
ISO-Cleanroom class 8
•6-servo-axes robot, freely programmable
•with pallet- change gripper
•fully integrated media guidance
•till 60 kg pay load
•maximum reaches from 620 - 2100 mm
•repeat accuracy +/- 0,05 till 0,15 mm
•clean air drilling fluid of the ampoule filling system-loaded area over clean air-laminarflow module
Cleanroom Robot System for Handling with Foodstuff Boxes according LMG, 93/43/EWG
ISO-Cleanroom Class 9
•6-servo-axes robot, freely programmable
•with pallet-change gripper
•fully integrated media guidance
•till 60 kg pay load
•maximum reaches from 620 - 2100 mm
•repeat accuracy +/- 0,15 mm
•clean air supply unit over clean air turn-outlets

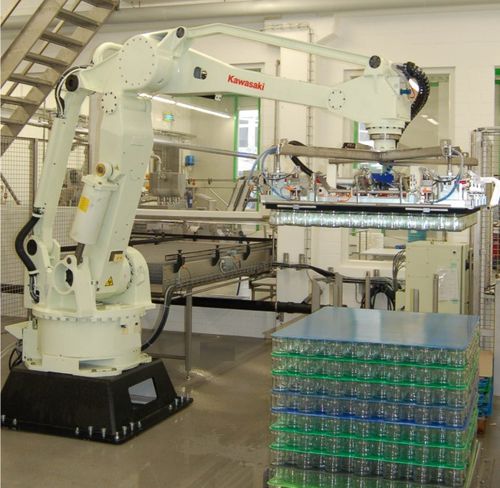

Cleanroom Robot System for Handling with Foodstuff Boxes according LMG, 93/43/EWG
ISO-Cleanroom Class 9
•6-servo-axes robot, freely programmable
•with 8-point pallet-gripper
•fully integrated media guidance
•till 30 kg pay load
•maximum reaches till 1670 mm
•repeat accuracy +/- 0,15 mm
•clean air supply unit over clean air tent
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Payload (kg) |
3 - 60
|
| Reach (mm) |
620 - 2100
|
| Repeatability (mm) |
0.05 - 0.05
|
| Application domain |
for clean rooms
|
| Function |
handling
|
| Number of axes |
6-axis
|
| Other characteristics |
high-speed
|
| Type |
articulated
|
