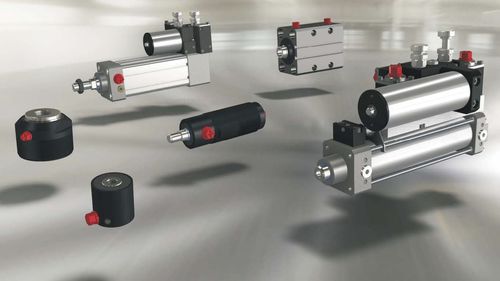

The hydraulic lock cylinders of the CB series complete the wide range of special cylinders manufactured by our company for a variety of industrial sectors.

Caracteristics

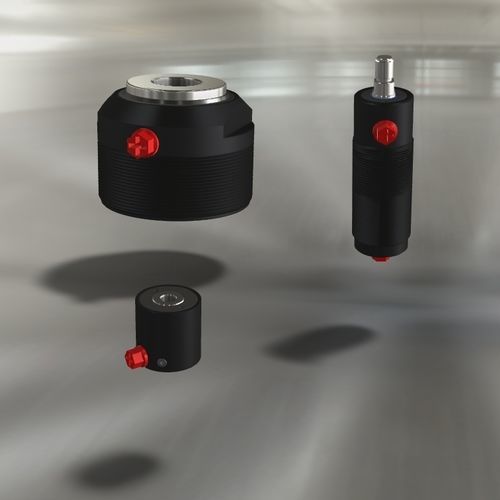

The CB hydraulic lock cylinders meet the demand for small-sized pressing devices delivering considerable pushing force.

Due to their small overall dimensions (their main characteristic), according to the model, these cylinders can be used to lock small, medium or large-sized pieces.

They can also be used for riveting, bending, marking or assembly works. They are manufactured in two versions (simple or double-acting), with a threaded external body and a smooth or tapped through hole, according to the model.

Cylinders can be secured (according to their model) using the thread available on the body, through the tapped holes on the body (flanged connection) or the through holes on the body.

The CB hydraulic lock cylinders by Tecnofluid meet the strictest reliability requirements, also under heavy duty, whenever precise pushes and considerable work loads are required.

Parameter Name	Parameter Value
Type	hydraulic
Technology	piston
Configuration	spring-return
Material	steel
Applications	clamping
Other characteristics	threaded body small dimension
Stroke (mm)	5 - 100
Force (N)	3010.64155 - 101449.79425
Pressure	200 bar, 320 bar (2,900.8 psi)
Fluid temperature	Max.: 80 °C (176 °F)Min.: -20 °C (-4 °F)
