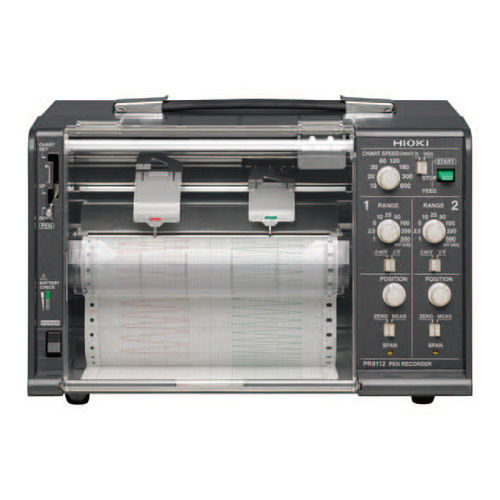

PEN RECORDER
PR8111, PR8112

1- or 2-Pen Chart Recording of DC Voltage Signals with an Easy-to-Use Portable Pen Recorder

Overview

Pen Recorders are still an indispensable tool for field technicians requiring on-the-spot printed reports during plant maintenance and troubleshooting. The Hioki PR8111 and PR8112 Pen Recorders are suited for applications where keeping analog records of measurement data are still required for complying with company standards.

Key Features
• - Easily portable, compact size
• - Support for three power sources, can be powered with dry-cell batteries
• - Protection from dripping water and dust, ships with a drip-proof cover
• - Pen-based, records data reliably, easy enough for anyone to use


Corrosion Protection Maintenance of Railroad Tracks

Electrical corrosion protection maintenance often requires recording waveforms outdoors
and the recorded waveforms sometimes need to be stored for long periods of time. The PR8111 Pen Recorder's wide ranges, from highly-sensitive (1mV Range) to high voltage
(250V Range), gives you the flexibility to use it in broad applications. The pen recorder is also used for leakage current measurement between the track or rail and buried facilities of DC electric railroads. The battery power functionality lets you use the PR8111 to record anywhere in the field.

Environmental Testing

Pen recorders are also widely used as recorders of measuring instruments for environmental testing. Since the recorder can be powered by batteries, it is particularly useful for recording outdoors without concern for AC power.

Parameter Name	Parameter Value
Type	chart
Applications	for predictive maintenance
Other characteristics	portable
