About

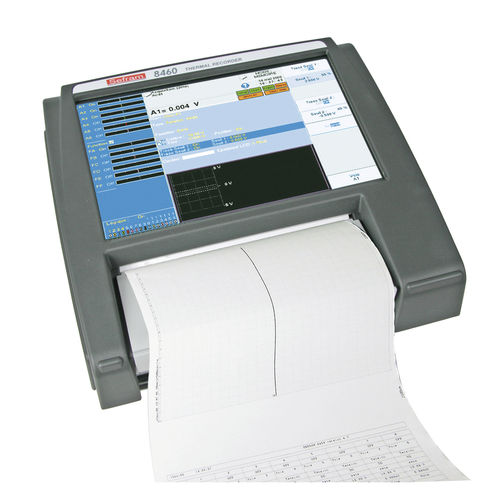

The Sefram 8460 is a High-Speed Thermal Paper Data Acquisition Solution with 270 mm paper that enables you to acquire multiple parameters: Voltage, Current (with shunt or Clamp), Temperature (thermocouples), measurements on sensors (e.g. 0-10V; 4-20 mA), etc.. You can set up your own channel configuration from the 4 input boards available: 6ch Universal Board, 6ch Universal High Voltage board, 6ch Strain Gauge board and 12ch Multiplexed boards. With suitable channel configuration you can record from 6 up to 36 channels and 16 logical inputs. Long term measurements with a sampling rate of 1MHz are possible by taking full advantage of the 500GB internal hard disk memory. With a special integrated function of Power Analysis you can record all your parameters on a Single-Phase and Three-Phase network (50Hz, 400Hz and 1kHz). This Data Acquisition Solution can be remotely controlled by USB, Ethernet or WiFi connection and the results can analysed on license-free software from Sefram.
Sefram 8460 combines autonomy, power and simplicity to provide you the right answer for your recording needs.

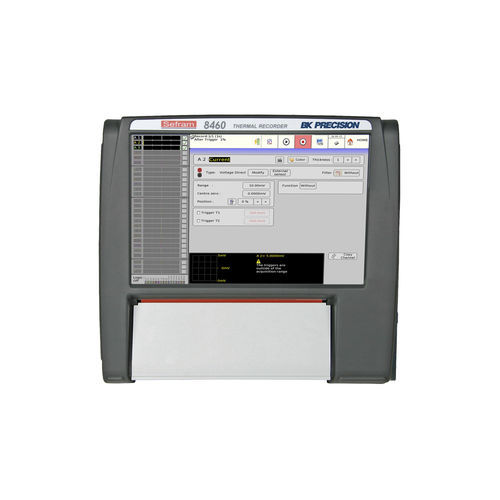

• TFT panoramic LCD touch screen (15"4)
• 6 to 36 analogue channels
• Up to 3 measurement boards
• 16 logical channels
• 270mm thermal paper printer
• 128 Mword memory, with segments
• Internal hard disk : 500 Gb
• Intuitive man-machine interface
• Power Analysis function (50Hz, 400Hz and 1kHz) - single and dual networks

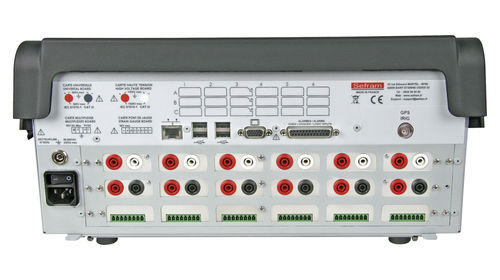

• Interfaces : 4 x USB, Ethernet, VGA
• Various measurement functions
• Remote control
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
chart
|
| Measured physical value |
temperature, universal, current
|
| Applications |
network
|
| Number of channels |
|
| Other characteristics |
|
