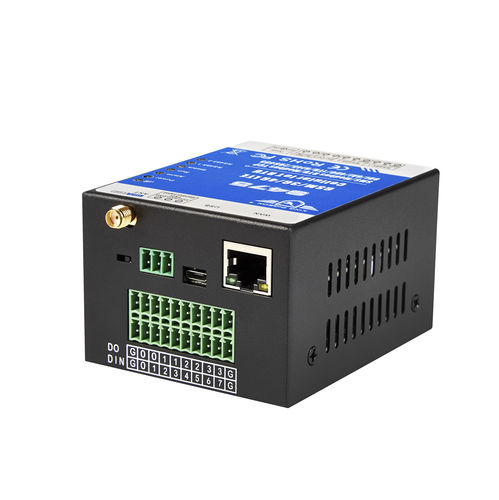

Dual-Sim Cellular IoT RTU (8DIN,6AIN/PT100,4Relay,1TH,USB,2 RS485,320 Extend I/O tags)

The Dual Simcard Cellular IoT Modbus RTU is design for working in the harsh industrial application environment, converting Modbus TCP/RTU to SMS and cloud platform. widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system, BTS monitoring, remote data acquisition, telemetrically systems, automatically control system. It can be used as a remote switch, remote I/O, remote smart PLC, timer switches. Supports SMS,GPRS,3G, 4G Lte Cellular Networks.Compatible Modbus TCP and MQTT IoT Protocols and can intergrate to the KPIIOT IoT Cloud Platform and OPC, SCADA and MES systems.

The Cellular IoT RTU is an industrial class, high reliability, high stability, and programmable Remote Terminal Unit (RTU). It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module. It provides 8 digital inputs, 6 analog(ultra high 24 bit resolution) or PT100 Resistance Temperature Detector (RTD) inputs, 4 relay outputs, 1 ambient sensor input for monitoring onsite temperature and humidity, 1 Ethernet RJ45 port for connect internet WAN or LAN, supports dual nano sim card, with 2 RS485 serial port, supports 224 mapping registers via Modbus RTU protocol. It can monitoring and operates the I/O ports by SMS, APP, Web Server, internet, timers and programmed inter-lock events automatically.

The Cellular IoT Modbus RTU can be used to remote PLC via RS485 or Ethernet port, converting Modbus RTU/Modbus TCP to SMS or cloud platform over ethernet or cellular networks.

Parameter Name	Parameter Value
Communication	cellular IoT, RS422/RS485, Modbus
Mounting	DIN rail-mounted
