About

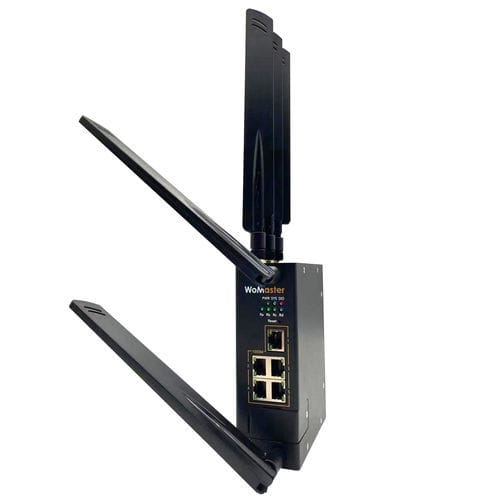

The WR315GR-2C Series industrial router is equipped with a dual-core 880MHz CPU and features a M2 expansion socket for 5GNR Cellular, as well as 4G LTE, 3G/2G networks. It has one Gigabit WAN port and four Gigabit LAN ports, which provide both switch functions and WAN redundancy on cellular networks. The router also includes security features such as a Firewall and OpenVPN to protect against cybersecurity threats. It has an embedded MQTTS, CoAP, and RESTful API for easy integration with public clouds such as AWS or Azure. The ThingsMaster OTA can also be set up for secure remote access to data and device management.
High-Speed 5GNR Cellular Network
•Dual Core High Speed Processor
•Extended M2 socket for 5G New Radio, SA+NSA, backward compatible support high speed 4G LTE
•5GNR/4G/3G/2G full cellular network compatibility
•GNSS Support GPS/GLONASS/BDS/Galileo for location services*
High-Performance Routing Switch
・5-port Gigabit Ethernet supports routing and bridging
mode
・Close to wire-speed NAT routing performance
・Hardware NAT for CPU utilization saving
Dynamic Routing with Redundancy Protection
・RIPv1&v2, OSPFv1&v2 for intra-domain routing within
an autonomous system
・Efficient unicast/multicast* static routing
・VRRP guarantees sustainable routing in a single point
of failure
Rugged Design for Wayside Surveillance, ITS Application
・EN50121-4 railway trackside EMC compliant for Industrial IoT, ITS applications
・Effective heat dissipation design for operating in -40~70oC environments
・CE Marking
・IEC61000-6-2/IEC61000-6-4 heavy industrial EMC compliance
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Network |
|
| Mounting |
DIN rail
|
| Number of ports |
5 ports
|
| Other characteristics |
|
| Applications |
|
