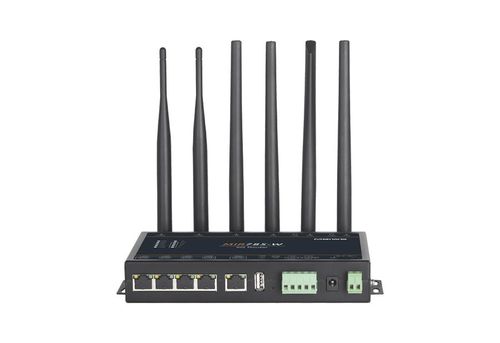

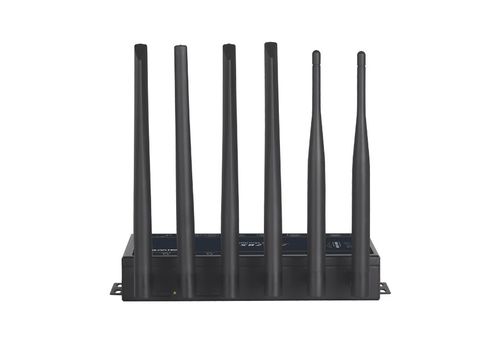

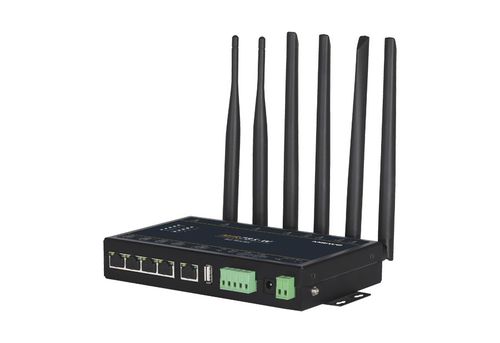

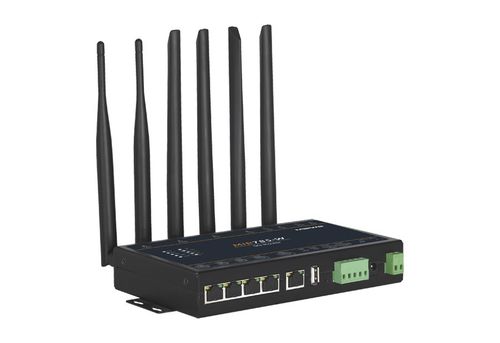

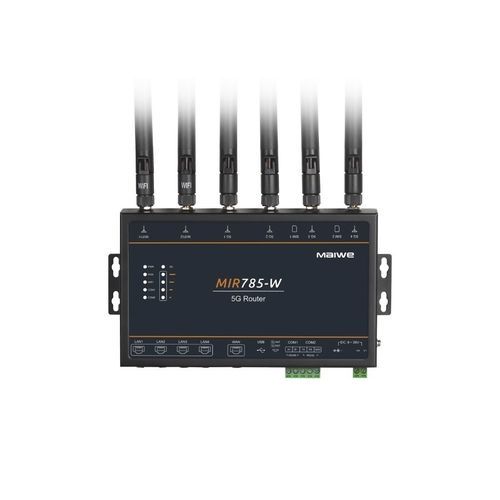

MIR785-W is a dual-band Gigabit WiFi 6 industrial 5G router newly launched by MAIWE. The dual-band concurrent rate is up to 1775Mbps, the wireless rate is faster, the transmission distance is longer, and it supports NSA and SA dual-mode 5G networks. It supports one RS485 and one RS232 interface and 5 Gigabit Ethernet interfaces, which can realize the mutual transparent transmission function between RS485 and RS232, cellular data and Ethernet.It provides a convenient and fast networking solution for user equipment, which is a perfect choice for industrial network.

Features and Benefits

-Support 4 wired LAN ports, 1 wired WAN port, all supporting 10/100/1000Mbps rate;

-Support 2.4GHz and 5.8GHz dual-band Wi-Fi, and both support the new generation of Wi-Fi 6 standard;

-Support OFDMA+MU-MIMO technology, support NSA and SA dual-mode 5G network, backward compatible with 4G, 3G;

-Supports 5G communication module with M.2 interface, which is convenient for customers to replace by themselves;

-Supports transparent data transmission from two serial ports RS485 and RS232 to the network;

-Support the new generation of peanut shell intranet penetration and dynamic domain name resolution DDNS;

-Support multiple VPN virtual private network protocols (PPTP, L2TP, GRE, OpenVPN, IPSec), and support VPN encryption function;

-Adopt openwrt open architecture to support users' secondary development;

-Support python, reserve USB2.0 interface, can connect external USB storage, support edge computing.

Parameter Name	Parameter Value
Type	cellular data
Network	Ethernet network LAN WAN OpenWrt MIMO 4G RS232 RS485 wireless WiFi 5G USB gigabit Ethernet dual-band EDGE
Other characteristics	VPN
Applications	industrial network
