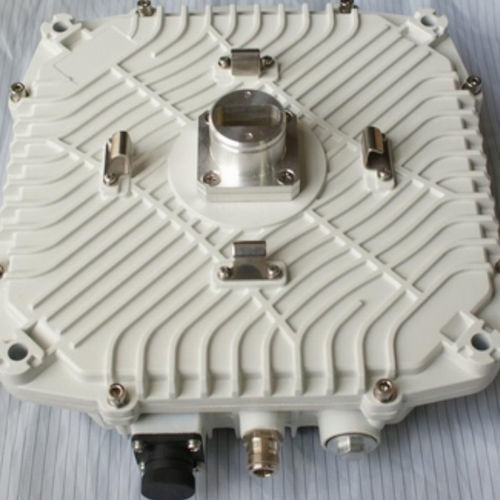

H16MRO digital microwave equipment is a new-generation packet microwave communication system based on an innovative design concept. Rather than using the traditional structure of split-mount between ODU and IDU, it uses a full outdoor integrated structure and innovative software/hardware design, integrating RF and Modeminto a single, compact outdoor unit, which is directly connected with the antenna, greatly simplifying the engineering installation, operation and maintenance.

Features

• Zero footprint, fully integrated and cost-effective solution
• Up to 450Mbps capacity with Hitless Automatic Adaptive Coding and Modulation (HAACM)
• Network synchronization with SyncE
• QoS (Quality of Service) and VLAN for traffic prioritization
• Scalable bandwidths (ETSI 3.5/7/14/28/56/112 MHz, FCC5/10/20/30/40/60/80MHz ) and flexible modulation schemes (QPSK-1024QAM) tosecure best link performance
• Power supply with coxial cable and Optional Optical GE port for strong lightning protection
• High availability and reliability based on licensed frequency bands from 6.5G to 23G and unlicensed frequency bands at 5.8H, 10.5G 17G and 24G
• Jumbo frame up to 9600 bytes, layer-2 switching, auto MDI/MDXI, VLAN, QoS,QinQ, STP/RSTP, RLS
• RF and digital loopback capability
• Digital Pre-distortion feature
• ATPC and built-in FEC function
• Built-in Bit Error Rate (BER) monitoring
• Small and attractive profile, Low latency and low power consumption, wide operating temperature range fits all weather conditions
• Local management capability as well as SNMP
• Zero IF design for easy manufacturing.

Parameter Name	Parameter Value
Type	cellular packet
Network	network LTE IP radio 3G broadband RF microwave
Mounting	built-in fully integrated outdoor
Other characteristics	broadband
Applications	industrial
