The DAB-OWT-A64 by DAB-Embedded, also known as the Lizardbox, is a secure networking communication device with a small (80x80 mm) form factor with Ethernet, USB 3.0, and Wi-Fi (supports various standards: IEEE 802.11a, 802.11b, 802.11d*, 802.11e, 802.11g, 802.11h, 802.11i, 802.11k*, 802.11n, 802.11r, 802.11v*, 802.11ac; * with specific WiFi firmware) connections for high-performance networking.

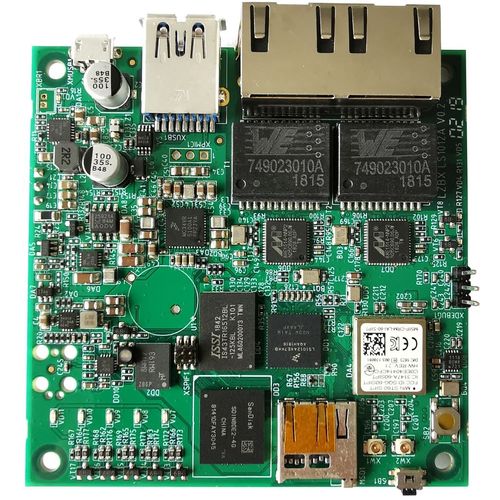

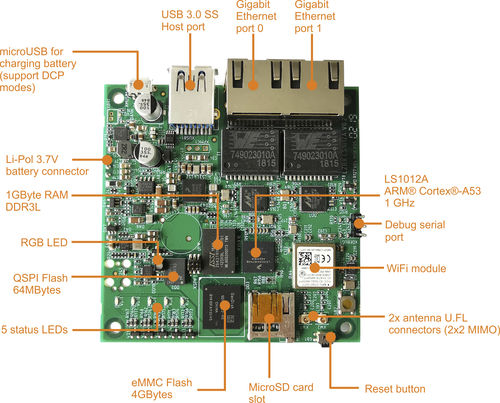

The device brings Trust Architecture of higher-end QorlQ LS device, allowing scalable, secure applications on a common platform. The DAB-OWT-A64 board based on NXP QorlQ LS1012A 1GHz single-core processor with crypto extensions, 1 GB of DDR3L memory, 4 GB of eMMC disk, 64MB of QSPI Flash and a slot for the microSD memory. This makes DAB-OWT-A64 board suitable for industrial, home, and business needs and can be used as a business router, media gateway, and industrial access point.

Additional WiFi firmware (Summit Stack from Laird) brings reliable wireless to the applications and environments that need it most, where connectivity is a must. Board ships with OpenWRT software package support all hardware blocks on board.


Box includes:
DAB-OWT-A64 board
FlexMIMO dual-band antenna (2.4GHz and 5GHz)

Source code & documentation: https://github.com/DAB-Embedded/dab-owrt-a64-v0.2

Parameter Name	Parameter Value
Type	cellular wireless multi-service point-to-point interface module wireless access point
Network	IP LAN Ethernet WAN internet WiFi WLAN radio IP Gateway LAN to LAN dual-band 2.4/5 GHz OpenWrt USB WWAN
Mounting	embedded for integration
Number of ports	2 port
Applications	industrial for IoT applications network for vending machine applications for ATM application for wireless networks for mobile applications
