-2G/3G/4G cellular router with auto-fallback
-E-mark certified (E2 - ECE R10)
-ITS application-ready (LTE band 38 support)
-802.11n WiFi interface (MIMO 2T2R), 2.4/5 GHz
-Advanced security (VPN, Firewall, radius ...)
-Automatic Cellular WiFi switching
-WiFi fast roaming (< 30ms)
-Shocks & vibrations proof (EN61373)
-Redundant wide range power supply input (+9 to +48 VDC) & PoE 802.3af (from model V2)
-Compact case, wall or DIN Rail mounting
-2 isolated inputs + 2 isolated outputs

Introduction

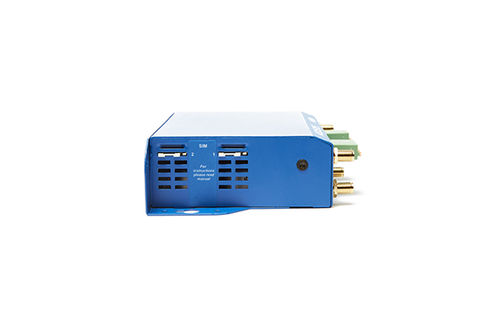

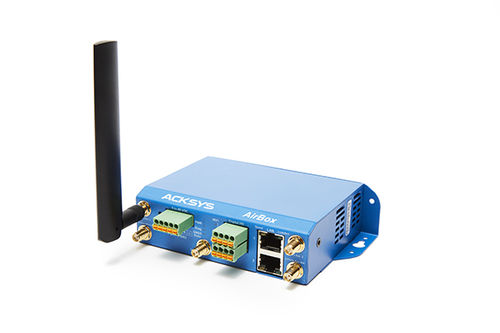

AirBox LTE is a cellular router (2G/3G/4G LTE) equipped with a dual-band WiFi interface (2.4 / 5 GHz), a GNSS interface (GPS, Galileo, GLONASS, Beidou), 2 Gigabit Ethernet ports and 2 isolated inputs/2 isolated outputs. It is designed for industrial applications (industry 4.0) and mobility (buses, vehicles ...).

M2M and IIoT : AirBox LTE has WiFi and cellular wireless interfaces to ensure maximum flexibility for industrial applications. It allows a remote access to all your devices (maintenance, control for non-critical applications, remote I/O...). Its WiFi interface, configured in access point mode, also offers local access to the network from a tablet or a smartphone. It supports all kind of Ethernet flows (video, Modbus TCP, EtherNet/IP, Profinet...) and its 4 GPIOs make it possible to remotely control equipment or to read the logic state of an input signal. AirBox LTE ensures the integrity of data and network thanks to its onboard services (VPN, Firewall, WPA-ENTERPRISE…).

Mobility : AirBox LTE is equipped with high-speed wireless technologies for transmitting data to and from vehicles.

Parameter Name	Parameter Value
Type	cellular
Network	4G Ethernet ProfiNet Modbus TCP LTE 4G LTE WiFi PoE MIMO 2G 3G dual-band GNSS
Mounting	DIN rail wall-mount vehicle-mount
Number of ports	2 port
Other characteristics	firewall with VPN dual sim high-speed with digital I/O MIMO
Applications	industrial for IoT applications for remote access for wireless networks for mobile applications M2M
