Cellular communication router µGUARD

Cellular communication router µGUARD

Cellular communication router µGUARD

About

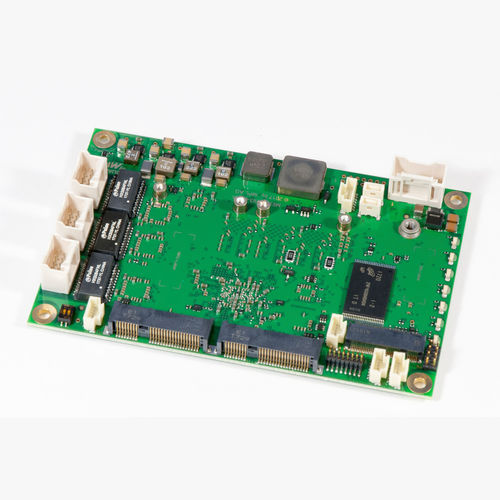

The µGUARD is a Firewall / Router / Access Point with long-term availability. The design is optimized for low power consumption, small size (SwaP) and highest flexibility, plus the capability for extended temperature. The µGUARD can be expanded with additional 10 ports over the µMAGBES (managed 10-port switch). The µGUARD and µMAGBES adds additional reliable and unique products to MPL’s Industrial Network Solutions.
The proven GUARD solution allows to operate the Firewall / Accesspoint in harsh environments like public transportation systems, rough industrial areas, or in defense applications.

µGUARD Highlights

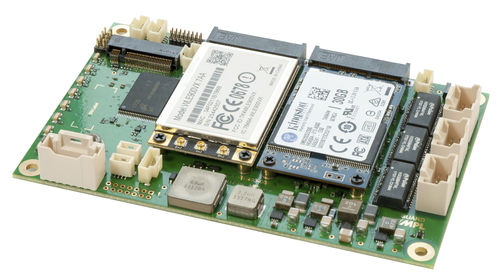

The standard operation temperature range is -20°C to +60°C and optionally available in extended temperature The internal two miniPCIe slots and the M.2 slot allow various extensions (WLAN, GPRS. LTE mSATA SSD...). The µGUARD is available as OpenFrame on a cooling plate to be mounted in existing housings or cabinets. Alternatively we have firewall solutions with RJ45, M12, or MIL-38999 connectors. Fiber can be provided over the TX2FX.

• Wide Input voltage range (8 - 36VDC)
• 3 x 1GBit Ethernet ports
• 10/100/1000Mbit support
• Easy integration of 10-port switch (µMAGBES)
• Proven OpenWRT operating system
• 2 x mPCIe slot
• 1 x M.2 slot with dual SIM support

These features make the µGUARD to the ideal and most secure solution for all rugged industrial, public transportation, and defense applications, where quality, reliability, low power consumption, and long-term availability are key. The flexibility of the well known OpenWRT OS gives you the security you need in your environment.



PARAMETERS

Parameter Name Parameter Value
Type
  • cellular
  • wireless
  • data
  • packet
  • central
Network
  • Bluetooth
  • Ethernet
  • 4G
  • LAN
  • 4G LTE
  • internet
  • IP
  • WLAN
  • gigabit Ethernet
  • 3G GPS
  • CAN bus
  • OpenWrt
Mounting
  • DIN rail
  • embedded
  • built-in
  • outdoor
  • rack-mount
Number of ports
3 port
Other characteristics
  • firewall
  • 2 Lan
  • OpenWrt
Applications
  • industrial
  • network
  • for the automobile industry
  • for remote access
  • for mobile applications
  • M2M
