Microprocessor-Based Switcher/Controller, 2,048 Inputs, 512 Outputs

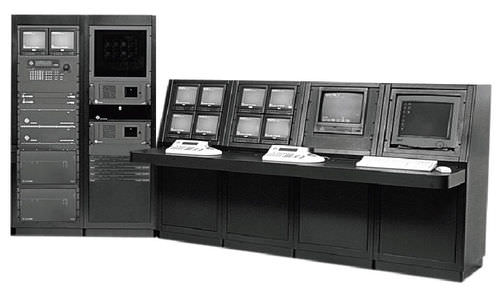

The 9770 System is a full-featured video matrix switching control system that allows users to view and control up to 2,048 cameras and 512 monitors on a single node. Expanded monitor capacity in the matrix bay allows implementation of larger systems with a smaller footprint (less hardware) than other matrix systems.

Features:

Microprocessor-Based, Full Cross-Point Video Matrix
High-Density Architecture Supports up to 256 Cameras and 32 Monitors in Each Bay
Control up to 2,048 Cameras and 512 Monitors in a Single Node
Expand Beyond 2,048 Cameras Using Networked Nodes (up to 24 Nodes)
Sixteen RS-422 COM Ports (Expandable to 120) and Two RS-232 Full-Duplex Ports Available on the CPU
System Diagnostic LEDs Displayed on Front Panel
Flash Technology Eases System Maintenance and Upgrades
Logical Camera Selection and Priority Level Operation
Multiplexer, DVR and VCR Control Via Keyboard
Built-in Video Loss Detection
User-friendly Windows®-Based System Management Software (Windows 98, NT® 4.0, 2000, XP)
Factory Tested PrePackaged Systems
ASCII Data Input to Interface Access Control and Other External Computer-Based Systems
Powerful Macro Programming
Remote Viewing and Control over TCP/IP Networks Using PelcoNet™
Alarm and Relay Interface to DX9000 Series DVR

Parameter Name	Parameter Value
Applications	CCTV
