About
Component Parts and Materials
1 Zinc-plated steel Nut
2 Brass Bush
3 Steel Spring
4 Steel Piston rod AISI 303
5 Polyurethane Rod seal
6 Nickel plated brass Shape body
7 Zinc-plated steel Locking screw
Fluids
Filtered and lubricated compressed air as well as non lubricated air.
Functioning

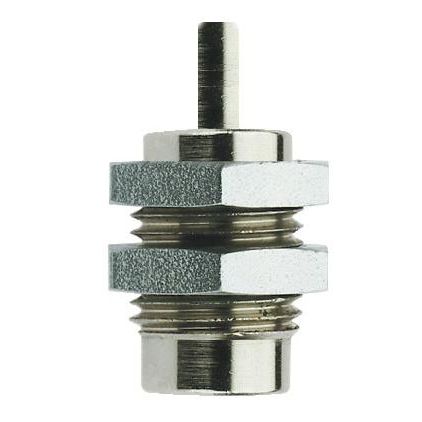

Single-acting, Threaded piston rod and No-threaded piston rod.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
pneumatic
|
| Technology |
with piston rod
|
| Configuration |
single-acting
|
| Material |
steel, brass
|
| Other characteristics |
|
| Stroke (mm) |
5 - 10
|
| Pressure |
2 bar, 7 bar (29 psi)
|
| Rod diameter |
6 mm, 10 mm, 16 mm (0 in)
|
| Ambient temperature |
Max.: 80 °C (176 °F)Min.: -20 °C (-4 °F)
|
