These top-entry robots are the ideal solution for extremely fast production cycles.

They can achieve take-out times lower than one second and, as a consequence, the reduction in the open-mould times is impressive. For this reason, they can satisfy even the most demanding user.

Simply fast

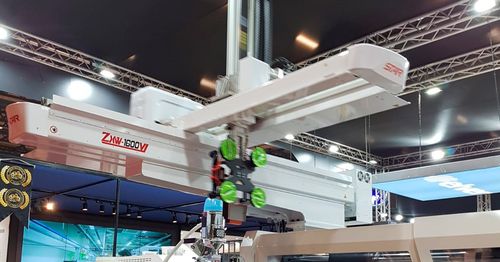

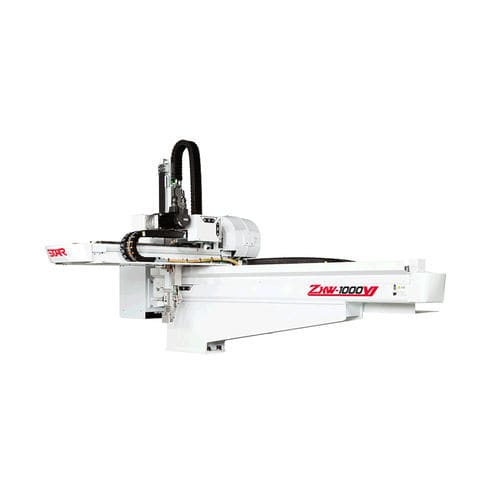

Thanks to their speed, the robots of the ZXW-VI series are mainly recommended for food packaging systems, IML applications and whenever fast and accurate handling is required

The robots of the ZXW-VI series are equipped with prismatic guide with special recirculating ball bearings; the drive to the axes is performed by brushless motors which convey the movement by means of toothed belts; these factors guarantee a precision positioning of ± 0.1mm.

The height of the robot is reduced, thanks the to its telescopic vertical arm. All these features make this robot very fast.

Parameter Name	Parameter Value
Type	Cartesian
Number of axes	3-axis 5-axis
Function	handling packaging
Payload (kg)	3 - 3
Reach (mm)	870 - 870
Repeatability (mm)	0.1 - 0.1
Weight (kg)	555
Width (mm)	3022 - 3747
