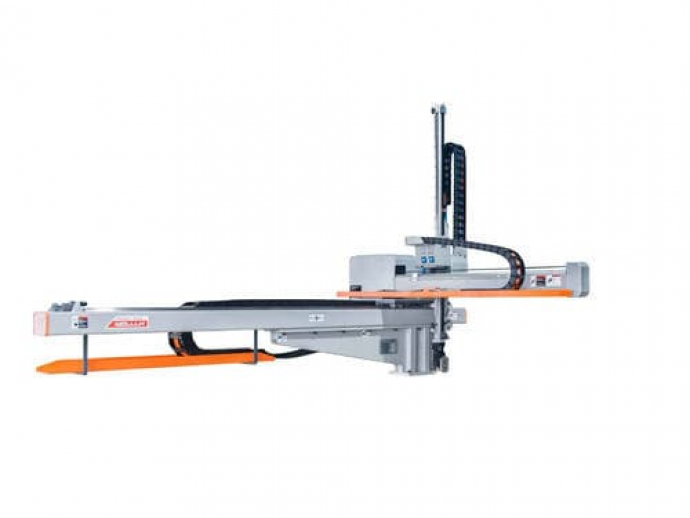

Our MaxA and MaxAW series is designed for smaller tonnage molding machines 30-300 tons. The MaxA(W) series are fully servo driven and are available with a single-stage or telescoping vertical arm.

Loaded with standard features such as 2 Vacuum Circuits, 2 Gripper Circuits, 20 Spare Input/Output signals, Pneumatic “Flip” C-Axis Standard, Advanced Vibration Dampening, Supervisory Safety Circuit (STO) and More. If you have any questions about any of these features or if need help sizing a robot give us a call

Key Specifications
IMM Range (tons) 30-250
Stroke Vertical (mm) 800
Air Consumption: 1
Drive System: AC Servo Motor
Gripper Angle 90
Max Current (amps) 8.9
Max Load (kg) 5
Power Supply 480 VAC 3 Phase 60Hz
Stroke Signle Arm Strip (mm) 800
Stroke Traverse (mm) 1400
Type Single Stage
Weight (kg) 360
Working Air Pressure (kg/cm) 5~8

Standard Features
-Riser/Adapter Plate

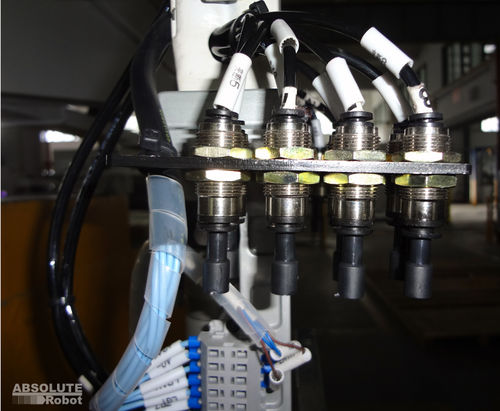

-2 Vacuum Circuits
-2 Gripper Circuits
-20 Spare Input/Output signals
-Pneumatic “Flip” C-Axis
-3-Axis Synchronized Movement
-Absolute Encoders (faster robot programming)
-Advanced Vibration Dampening
-Supervisory Safety Circuit (STO)
-Compact Floor Mounted Electrical Cabinet for Easy Maintenance
-Fully unlocked robot pendant
-Large Mold Storage Capacity
-Programs Stored in Cabinet, Not Pendant (data not lost if pendant damaged)
-26 ft (8 m) Long Pendant Cable for Maneuverability While Programming
-Advanced Mold & Vertical Arm Protection
-Quick Change Universal Mounting Plate on Vertical Arm
-Euromap Adapter for Both 12 & 67 Molding Machines

Applications
Small and medium tonnage applications
Insert applications
Medical (clean room)

Parameter Name	Parameter Value
Type	Cartesian
Number of axes	3-axis
Mounting	floor-mounted
Application domain	for injection molding machines
Payload (kg)	5 - 5
Reach (mm)	800 - 1000
