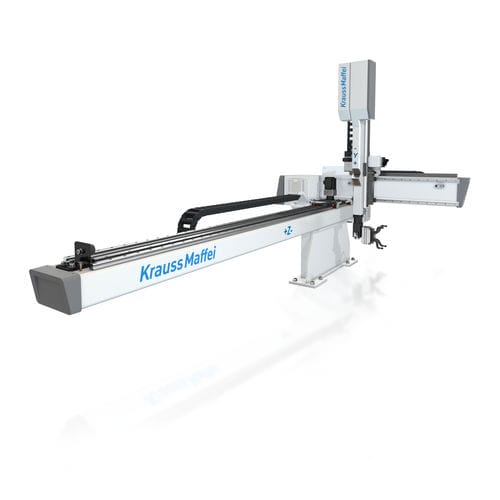

The new LRX EasyControl linear robots provide both beginners and experienced injection molding processors with an efficient solution for simple pick-and-place applications.

*100% compatibility with other injection molding machine manufacturers
*Attractive price/performance ratio
*Optimal equipment for pick-and-place applications
*Fast process adjustment

Precision with rack-and-pinion drive

*Rack-and-pinion drive for high-precision robot positioning with fast movements in all axes.

Motors with absolute value encoder

*High acceleration and short cycle times, No hassle with referencing when starting the robot (absolute encoder)


Operation with the "convenience" factor

*The new control system conforms to the concept of the LRX EasyControl. The system features a hand-held HMI to allow for fast start-up and easy operation. Depending on the task, programming can be done graphically or using a text editor.

Fast and flexible with the central media portal

*Central media supply allows simple gripper change and provides modular expandability of gripper functions.

High-performance control cabinet concept ensures high availability

*Control of pneumatic and vacuum valves and compact main board for I/O signal processing

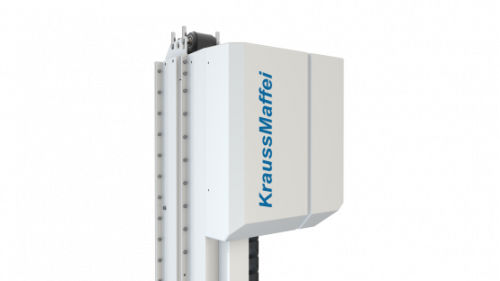

Compact and light: the new wrist axes

*Servo wrist axes optimized in design and weight increase productivity by saving process times.

Parameter Name	Parameter Value
Type	Cartesian
Number of axes	6-axis
Function	pick-and-place for production
Application domain	for injection molding machines
Other characteristics	compact high-precision
