About

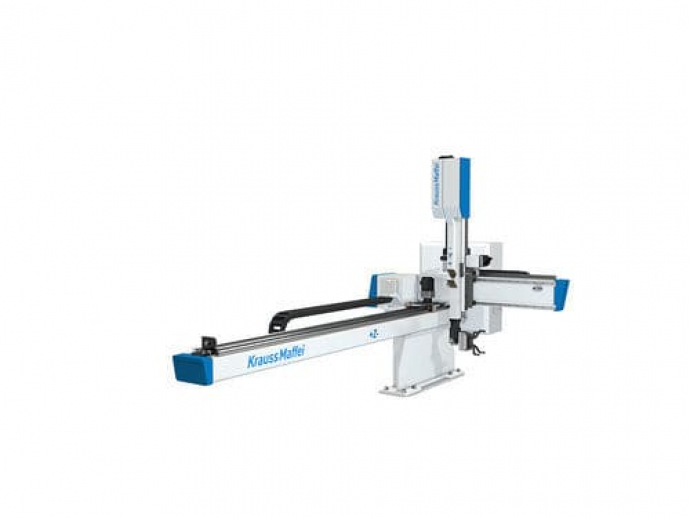

The compact robots of the LRX series are a reliable pillar for your production.
The progressive design with decentralized control cabinet concept and rigid X axis provides a new form of accessibility.
*Modular system
*CE-compilant production cells
*Cost-effective entry-level solutions
*Increase the degrees of freedom through numerous wrist axis combinations
Ideal accessibility with the decentralized control cabinet concept:
*More freedom for maintenance and service in production.
Impressive precision with rack-and-pinion drive:
*Rack-and-pinion drive for high-precision robot positioning with fast movements in all axes.
New control cabinet concept ensures high availability:
*Protected against water and dirt particles with the protection rating IP54 and optimized heat dissipation due to active ventilation during operation.
Fast and flexible with the central media portal:
*Central media supply allows simple gripper change and provides modular expandability of gripper functions.
New concept for high degree of safety:
*Fixed X axis provides clear access to plasticizing unit and material supplies.
Greater efficiency due to digital vacuum control with air-saving function:
*Fully integrated in the MC6 control system: the air-saving function saves up to 90 percent of the compressed air. Leakage monitoring reports malfunctions during operation, making the planned maintenance of compressed air circuits possible.
Compact and light: the new wrist axes:
*Servo wrist axes optimized in design and weight increase productivity by saving process times.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
Cartesian
|
| Number of axes |
3-axis
|
| Function |
for production
|
| Mounting |
floor-mounted
|
| Protection level |
IP54
|
| Other characteristics |
|
| Payload (kg) |
5 - 100
|
