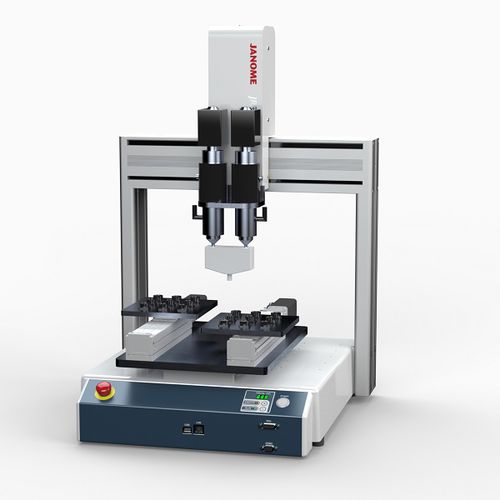

High Payload Benchtop Robot

-JR3000F Series executes fine processes bearing work payloads up to 20kg and mounted tools up to 15kg.
-Features a five-phase feedback type stepping motor, and a brake on the Z-Axis motor to prevent the Z-Axis from descending during a sudden stop or an unexpected loss of external power.

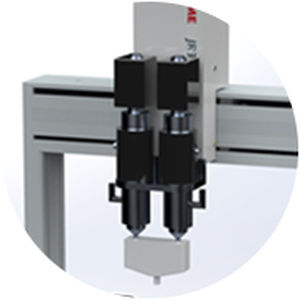

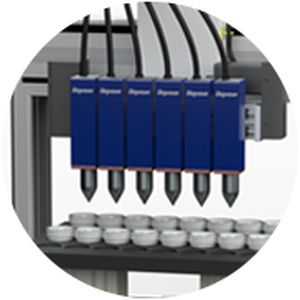

-Ideal for processes such as dual component dispensing, hot melt dispensing, plasma finishing, ultrasonic welds and more.
-Available in two sizes (XYZ ranges: 300x320x150 and 400x400x150mm) either as Dispensing Model or Standard Model robot, with the Dispensing Model, you can use our optional needle adjuster function for position corrections.
-Use our optional JR C-Points II PC software to make, edit, store and run programs from your PC.
-Also compatible with USB camera for image-based position teaching.

Parameter Name	Parameter Value
Type	Cartesian
Number of axes	3-axis
Function	injection handling for assembly spraying dispensing for welding cutting screw tightening finishing plasma surface treatment
Mounting	benchtop
Application domain	for the automotive industry for the electronics industry for the pharmaceutical industry for medical applications for heavy loads
Other characteristics	short cycle time vision system high-precision
Payload (kg)	15 - 15
Reach (mm)	300 - 400
Repeatability (mm)	0.01 - 0.01
