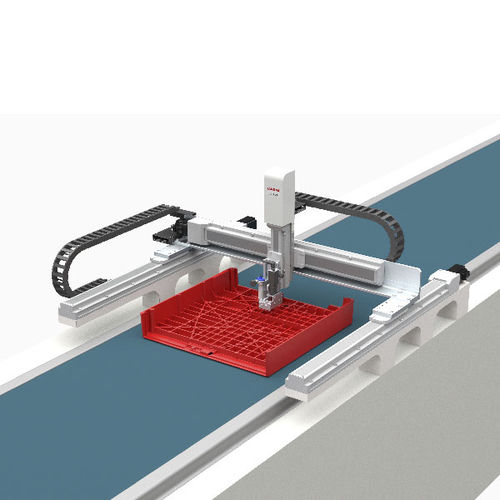

Cartesian robot JC-3-X2 Series

Cartesian robot JC-3-X2 Series

Cartesian robot JC-3-X2 Series

About


Long Stroke Cartesian Robot

-- Maximum XY stroke range 1200x1200mm
-- Various XYZ stroke length combinations available
-- Dedicated controller with either Standard or Dispensing system software available.
-- Ideal for use either as an independent unit or as part of an integrated assembly line.
-- Position repeatability ±0.01mm
--Two X-Axes motors ensure accuracy and stable position repeatability over longer distances.
-- Easily handles pallet dispensing or dispensing on large workpieces
-- Optional teaching pendant available for point teaching through JOG movement.
-- Controller has abundant interface connectors for both external devices and your PC. Optional Fieldbus is also available for PC interfacing.
-- Built-in simple sequencer.
-- Optional 3 needle adjuster accessory automatically corrects any nozzle misalignment, moving the nozzle to the correct work position.



PARAMETERS

Parameter Name Parameter Value
Type
Cartesian
Number of axes
3-axis
Function
  • for assembly
  • painting
  • dispensing
  • spraying
Mounting
floor-mounted
Application domain
  • for the food industry
  • for the automotive industry
  • for the pharmaceutical industry
  • for the electronics industry
  • for medical applications
  • for the cosmetics industry
Other characteristics
vision system
Payload (kg)
0 - 8
Reach (mm)
60000 - 120000
Repeatability (mm)
0.01 - 0.01
