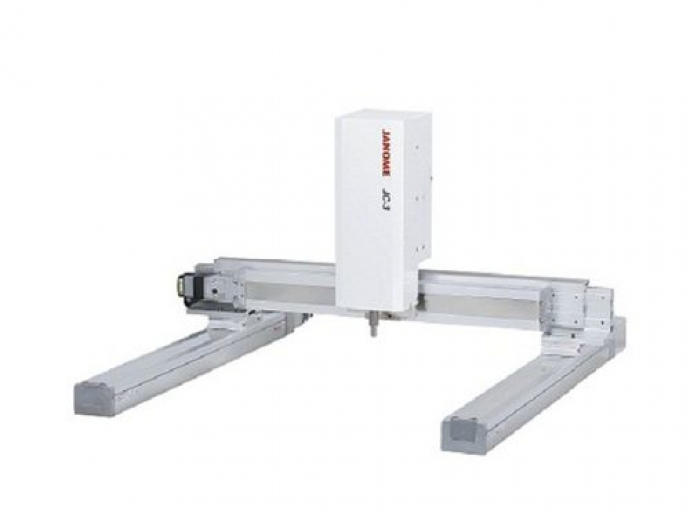

All-in-One Cartesian Robot

The multifunctional JC-3 Series Cartesian Robot comes complete with an easy-to-use dedicated controller and robot unit with a rich selection of stroke lengths for each axis.
Like our desktop robots, the JC-3 has convenient installation settings. Program teaching is easy; with the interactive method teaching pendant there is no need for complicated settings.

Dispensing, Screw Tightening and Standard Models Available:
-In addition to highly versatile Standard system software, dedicated Screw Tightening and Dispensing software greatly shortens program setting time.
Powerful Motors: Feedback control stepping motors on the X and Y Axes
-Maximum acceleration: 5000mm/s2
-Maximum speed: 800mm/s.

Comprehensive Interfacing: Ethernet port (LAN) and 3 COM ports (RS2323C) included as standard equipment; optional Fieldbus port (available types: CC-Link, DeviceNet, PROFIBUS, EtherNet/IP, PROFINET and CANopen). Specify a program number and run it from the PLC, as well as specify position coordinates and move the robot axes when creating or editing programs.

Vision System Compatibility: Enhanced camera functions for position correction, automatic camera calibration and CCD camera adjustment for finer precision.

Parameter Name	Parameter Value
Type	Cartesian
Number of axes	4-axis 3-axis
Function	for assembly pick-and-place dispensing cutting deburring screw tightening surface treatment
Application domain	for the food industry for the automotive industry for the electronics industry for the pharmaceutical industry for medical applications for small parts
Other characteristics	high-speed vision system low-noise high-precision
Payload (kg)	3 - 3
Reach (mm)	100 - 600
Repeatability (mm)	0.008 - 0.02
