【Technical Feature】

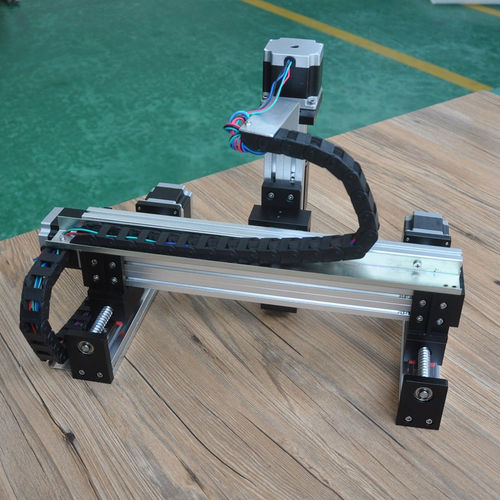

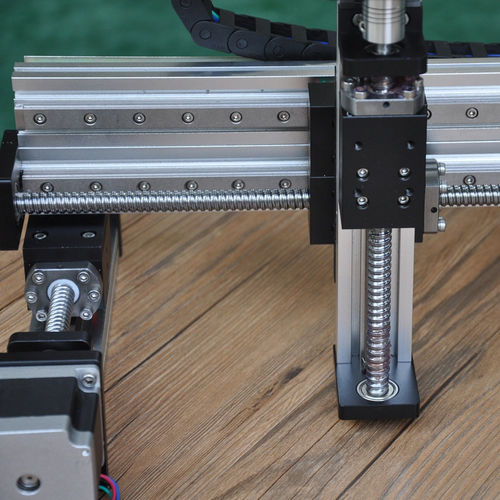

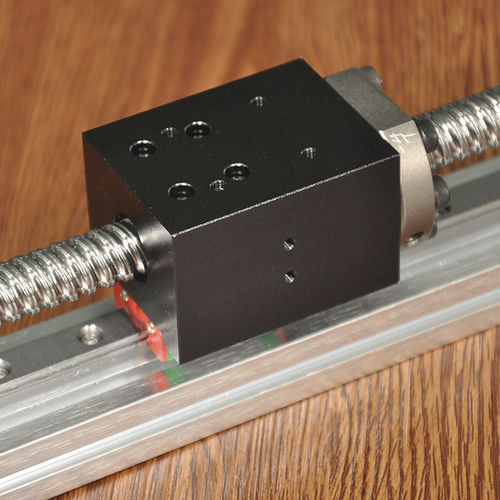

FSL40 linear guide is semi-sealer structure, body width 40mm, high stability,compact structure,versatility feature, suitable for normal working environment, it is convenient to use single axis or multi-axis to assemble easy functional usage robotic arms for kinds of industries.

【Range of Application】

Precise positioning, dispensing, spray painting, visual inspection, moving, grabbing, cutting and welding, automatic assembly, automatic locking screws, palletizing, etc. Such as: PCB board detection, optical disc stacking device, parts pick and place.

【http://www.fuyumotion.com】

Stroke Range: 50mm~1000mm
Position Accuracy: 0.05mm
Max Speed: 250mm/s
Max Load: 25kg
Ball Screw: G1204/G1605/G1610

FUYU Technology is a Linear Robotic Manufacturer and established in 2011.

Multi-axis Positioning System can be composed of several linear modules for customized Stroke, Precision, Speed and Load Capacity. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.

As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 12 hours to suggest the best solution for the linear gantry robot.

Parameter Name	Parameter Value
Type	Cartesian
Number of axes	4-axis
Function	for assembly handling for press automation milling packaging spark optical emission palletizing dispensing pick-and-place injection loading machining drilling transfer painting unloading marking cutting for welding
Application domain	for the automotive industry for the food industry for medical applications for the wood industry for laser applications for teaching for the electronics industry for machine tools for injection molding machines for heavy loads
Other characteristics	custom high-speed compact waterproof low-noise OEM pack high-precision
Payload (kg)	10 - 25
Reach (mm)	50 - 1000
Repeatability (mm)	0.05 - 0.05
