NEW!

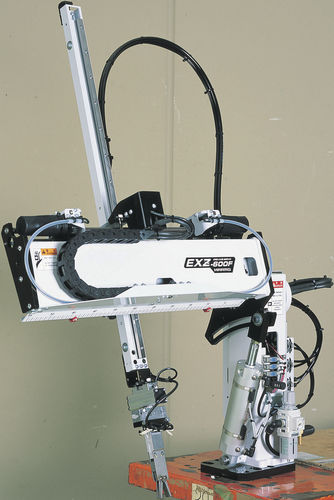

2-Axis Servo Swing Type Sprue Picker

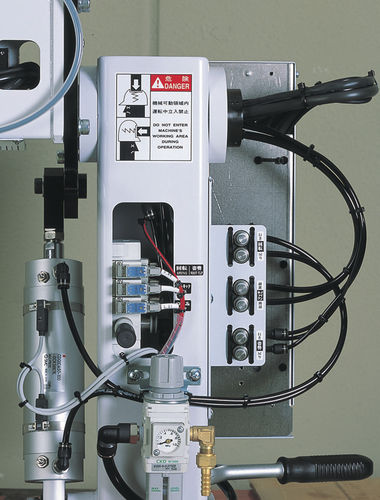

●Newly designed body: The controller unit (controller and air valves) are built into the solid main body and the components are well-laid out to be insulated from the influence of surroundings. The body is 45% more rigid (comparing to previous EXZ-600).
●Easy to reach: The “single-action” feature with the easy-to-reach ratchet position, provides smooth and speedy mold change-over.
●The wirings are tucked into the wrist unit to avoid unnecessary contact or breakage of the wirings.
●15% lighter in weight of the rotation unit (Y/Z axes) and improved bore diameter from φ50 to φ63; stable rotational movement with 1.6 times more thrust and light-weight unit
●By employing the servo motors on Z and Y;
　1. 35% less removal time (comparing to previous EXZ-600: 35%, EXⅢ: 45%)
　2. The teaching data is loadable from the internal mold memory. No more stroke adjustment when changing the molds.(50 mold memories after teaching the points)

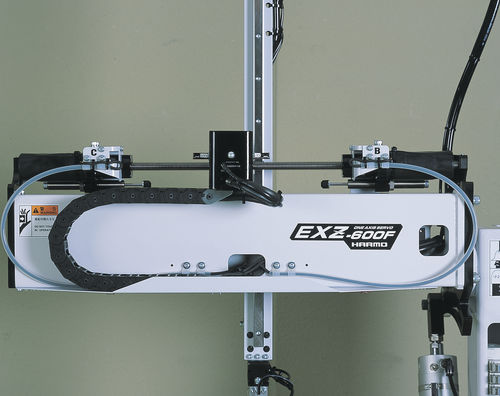

●The cable track on the kick axis protects cabling and tubing. The smooth motion
provides stylish appearance of the robot.

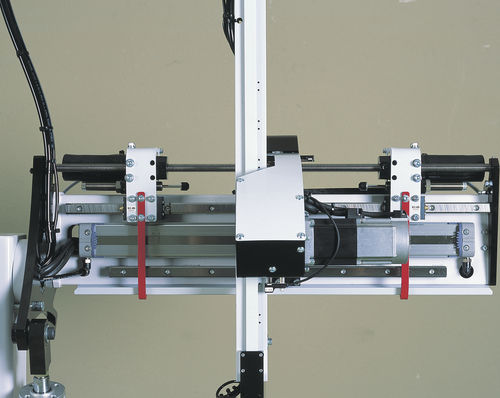

●The linear guides on the vertical and the kick axes enable the speedy motions with less vibration.
●The grease catcher is equipped underneath the linear guide.

Parameter Name	Parameter Value
Type	Cartesian
Number of axes	3-axis
Function	pick-and-place
Application domain	for injection molding machines
Other characteristics	self-learning
Payload (kg)	1 - 1
Reach (mm)	28 - 528
