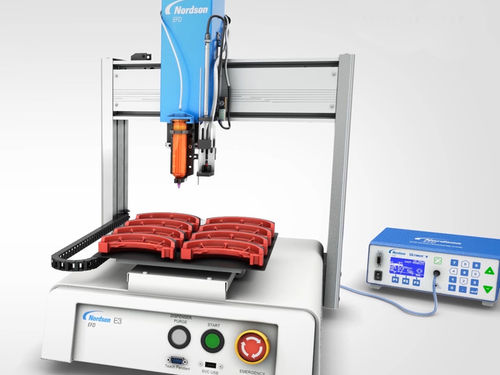

The E Series automated fluid dispensing system is a desktop robot that features a simple-to-use Teach Pendant for quick setup and easy programming.

It facilitates precise fluid dispensing in an automated solution. Available in four sizes, from 200 x 200 mm to 500 x 500 mm, the E Series adapts to a wide range or working envelopes.

True 3D motion control makes programming dots, lines, circles, arcs, and compound arcs easier. The E Series also easily integrates into in-line transfer systems, rotary tables, and pallet assembly lines.

Features

Simplified setup and programming via Teach Pendant or file importation
Rugged, reliable construction
Small footprint
True 3D motion control
Wide range of work envelopes

Parameter Name	Parameter Value
Type	Cartesian
Number of axes	3-axis
Function	dispensing
Mounting	benchtop
Other characteristics	short cycle time
Payload (kg)	5 - 5
Repeatability (mm)	0.008 - 0.008
