About

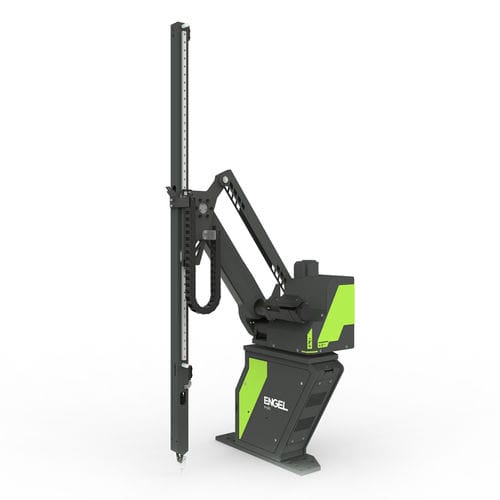

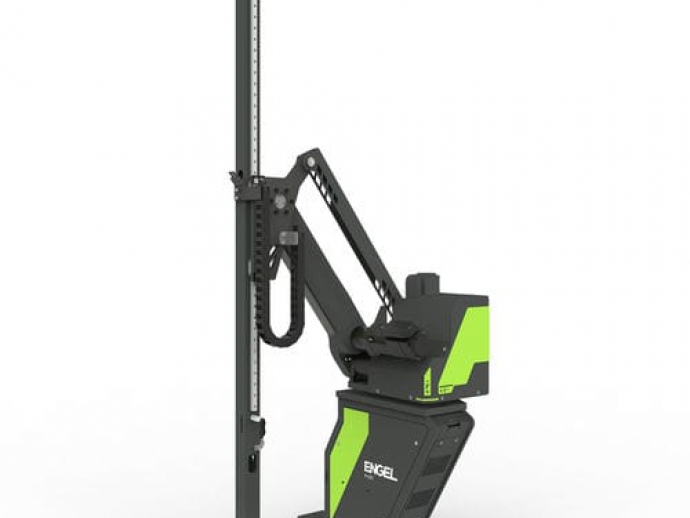

Based on the technology of the proven e-pic Z pick & place robot, the servo-motorised e-pic B sprue picker combines linear movements with a swivel arm to achieve totally new kinematics. It is in particular an economic choice for the fast removal of sprues, if the parts have to be removed manually or fall out of the machine freely.
Programmable, energy saving, low maintenance overhead
Return on investment after 3 years of operation
Can be used as a stand-alone robot with a EUROMAP 67 interface
Fast vertical stroke with 800 mm linear axis and deflected belt drive
Integrated control solution for injection moulding machine, robot and auxiliaries
For diverse applications up to 1 kg parts weight
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
Cartesian
|
| Number of axes |
2-axis
|
| Function |
pick-and-place
|
| Application domain |
for injection molding machines
|
| Other characteristics |
|
